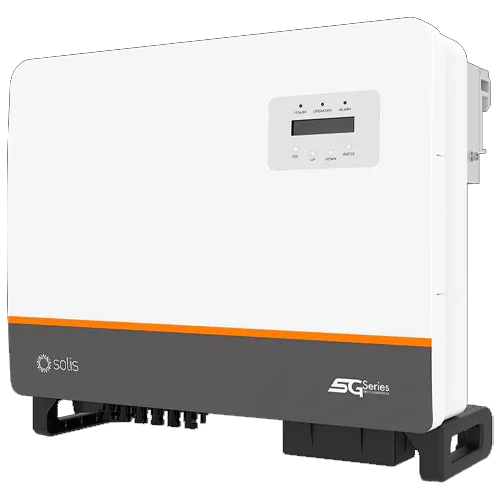

Solis S5-GC60K 60kW three-phase on-grid inverter

Modelo: S5-GC60K

Sku: SOLIINV026
Vendor: Solis

€3.582,38 EUR

€2.865,90 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solis S5-GC60K 60kW three-phase on-grid inverter with 6 MPPT and 12 strings, 98.7% efficiency, IP66 C5, AFCI and I-V scan. Export control, nighttime SVG, and 150%+ DC for large industrial rooftops.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solis S5-GC60K 60kW three-phase on-grid inverter is the highest power solution in the S5-GC series for industrial self-consumption. It incorporates 6 MPPT (12 inputs) that optimize up to six photovoltaic subfields with different behaviors, increasing capture on large roofs. Its high-performance electronics offer 98.7% efficiency (EU 98.3%), support string currents up to 16 A, and allow oversizing the DC field above 150% to improve the plant factor. The IP66 chassis with C5 anti-corrosion protection and intelligent redundant fans ensure longevity and thermal stability. In addition, it integrates AFCI, string monitoring, I-V scanning, nighttime SVG, and export control to comply with zero export regulations.

Main Features

Nominal power 60 kW (66 kVA/66 kW max.) in 3/N/PE 220/380–230/400 V, 50/60 Hz.
6 MPPT / 12 strings for maximum flexibility on roofs with multiple slopes and shading.
MPPT range 180–1000 V (start 195 V), U_DC max. 1100 V.
Current per MPPT 32 A (I_sc 40 A) and 16 A per string for TOPCon/HJT modules.
RS485/USB communication, Wi-Fi/GPRS option, and remote management in SolisCloud.
Advanced functions: nighttime PID recovery (optional), nighttime SVG, “Y” connectors on DC.

Advantages or Benefits

Maximum production by managing six independent PV zones and allowing 150%+ DC/AC.
Predictive O&M with I-V scanning and string alarms that reduce diagnostic times.
Industrial safety: AFCI, SPD II DC/AC, anti-islanding, and comprehensive thermal protection.
Weather resistance with IP66 C5 for saline or corrosive industrial environments.
Simple integration with export managers and plant BMS/EMS systems (via RS485).

Purpose or Applications

Designed for 60 kW installations in light industry, logistics, agri-food, shopping centers, and public buildings. Ideal for projects with zero export regulations and large roofs with multiple orientations or shading.

Technical Specifications

Nominal / max. AC power	60 kW / 66 kW • 66 kVA
Grid	3/N/PE, 220/380–230/400 V • 50/60 Hz
Nominal / max. output current	91.2/86.6 A (380/400 V) • 100.3 A max.
MPPT / strings	6 / 12
U_DC max. / MPPT range / Start	1100 V / 180–1000 V / 195 V
I per MPPT / I_sc per MPPT	6×32 A / 6×40 A
Current per string	up to 16 A
Max. / EU efficiency	98.7% / 98.3%
Communications	RS485, USB; optional Wi-Fi/GPRS; touch LCD; SolisCloud
Functions	Nighttime SVG, export control, optional PID recovery, Y connectors on DC
Protections	AFCI, SPD II DC/AC, anti-islanding, overcurrent, overvoltage, temperature
IP / cooling	IP66 C5 / intelligent redundant fan
Dimensions / weight	691×578×338 mm / 53.7 kg
Operating temp. / altitude	−25…+60 °C / ≤ 4000 m • Humidity 0–100%

Compatibilities

Integrable with RS485 meters/relays, Wi-Fi/GPRS modules, and export managers. Accepts high-power PV modules within the specified electrical limits.

The Solis S5-GC60K 60kW three-phase on-grid inverter combines 6 MPPT, advanced diagnostics, and IP66 C5 for large industrial self-consumption projects with maximum reliability and control.
