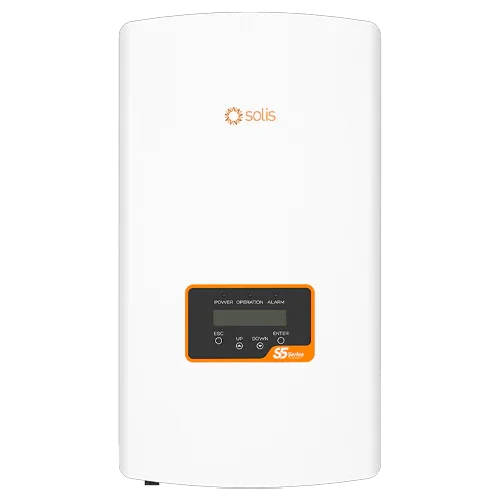

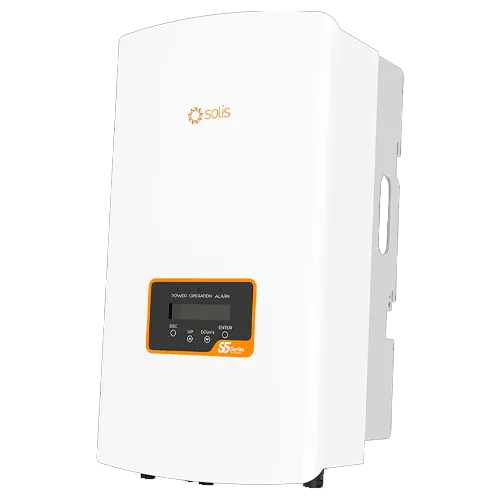

Solis S5-GR3P12K Three-Phase 12kW On-Grid Solar Inverter

Modelo: S5-GR3P12K

Sku: SOLIINV017
Vendor: Solis

€1.312,58 EUR

€1.050,06 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solis S5-GR3P12K Three-Phase 12kW On-Grid Solar Inverter with 2 MPPT and 98.7% efficiency. IP66, AFCI, 4 strings (16 A each) and up to 150% DC/AC for maximum performance in commercial spaces and light industrial buildings.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solis S5-GR3P12K Three-Phase 12kW On-Grid Solar Inverter increases power while maintaining the high-performance platform of the S5 series. Its dual MPPT with 4 strings supports high-current modules, while the 98.7% efficiency, wide MPPT range, and IP66 protection rating provide more energy and reliability outdoors. It incorporates AFCI for arc fault protection and RS485/Wi-Fi communications for agile remote monitoring and diagnostics.

Main Features

Nominal AC power: 12 kW (13.2 kVA max.) at 3/N/PE 230/400 V; 50/60 Hz.
2 MPPT / 4 strings (2 per MPPT) to combine two orientations or subfields.
DC input up to 1100 V; MPPT range 160–1000 V; startup 180 V.
16 A per string (I_sc allowable 20 A), suitable for TOPCon/HJT modules.
Max. efficiency 98.7%; European efficiency ~98.2%; THDi < 2%.
Supports up to 150% photovoltaic oversizing (DC/AC).

Advantages or Benefits

Greater consumption coverage and better capacity factor for demanding businesses and homes.
Optimized production with 2 independent MPPTs for E/W roofs or with partial shading.
Simple installation and O&M: MC4 connectors, natural convection, and SolisCloud for alerts and data.
Enhanced safety with AFCI, anti-islanding, and comprehensive electrical protections.
Outdoor robustness: IP66 weatherproof enclosure.

Purpose or Applications

Ideal for three-phase self-consumption in businesses, workshops, offices, or large homes. Perfect when export limitation is required or when designing long strings with high input voltage and startup at 180 V.

Technical Specifications

Nominal / max. AC power	12 kW / 13.2 kVA
Grid	3/N/PE, 220/380–230/400 V; 50/60 Hz
Nominal output current	≈18.2 A (380 V) / ≈17.3 A (400 V)
MPPT / strings	2 / 4 (2 per MPPT)
U_DC max. / MPPT range	1100 V / 160–1000 V
Startup voltage	180 V
I_string max. / I_sc	16 A / 20 A
PV oversizing	Up to 150% DC/AC
Max. / EU efficiency	98.7% / ~98.2%
Communication	RS485; optional Wi-Fi / GPRS
Protections	AFCI, anti-islanding, overvoltage/overcurrent (requires activation)
Protection rating	IP66; convection cooling
Dimensions / weight	≈310 × 563 × 219 mm / ≈21–23 kg
Operating temperature	−25…+60 °C; altitude ≤4000 m

Compatibilities

Integrable with Solis connectivity modules (Wi-Fi/GPRS), RS485 meters/relays, and export control systems. Compatible with high-power photovoltaic panels within electrical limits.

The Solis S5-GR3P12K Three-Phase 12kW On-Grid Solar Inverter offers power, 98.7% efficiency, and IP66 safety for high-performance professional three-phase projects.
