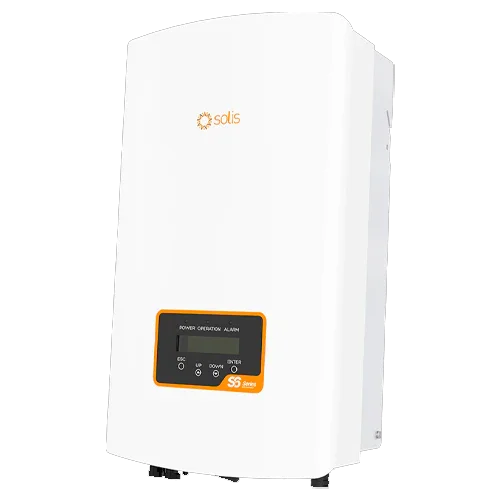

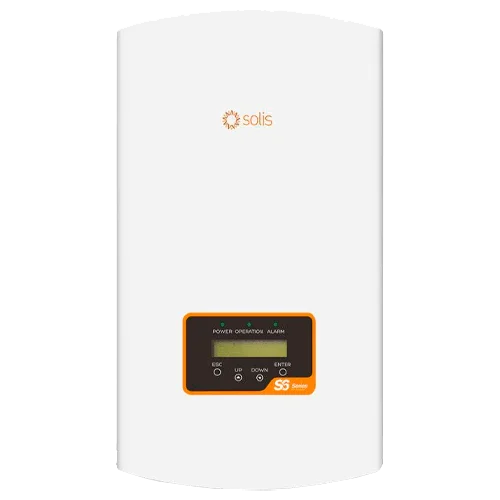

Solis S6-GR1P6K Single-Phase 6kW On-Grid Solar Inverter

Modelo: S6-GR1P6K

Sku: SOLIINV008
Vendor: Solis

€818,18 EUR

€654,54 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solis S6-GR1P6K Solar Inverter Single-phase 6kW On-Grid with 2 MPPT, max. efficiency 97.7%, IP66 and AFCI. MPPT range 90–520 V and 14 A per input for high-current modules. Ideal for homes with higher demand.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solis S6-GR1P6K Single-Phase 6kW On-Grid Solar Inverter is the highest power version of the S6 single-phase series, designed for homes with high consumption or small businesses. It incorporates two independent MPPTs with a precise tracking algorithm, maximum efficiency of 97.7%, and a PV input prepared for next-generation panels with high currents. Its IP66 enclosure, arc fault protection (AFCI), and integrated export manager (EPM) make it a robust, safe solution adaptable to regulations with export limitation.

Main Features

Nominal output power: 6 kW (6 kVA) single-phase, 220/230 V; 50/60 Hz.
2 MPPT / 2 strings to combine two orientations or subfields with different numbers of modules.
DC input: up to 600 V, MPPT range 90–520 V, and startup at 120 V for earlier production.
Current per MPPT of 14 A; admissible I_sc 22 A for high-current TOPCon/HJT modules.
Max. efficiency 97.7%; European efficiency 97.1%; THDi < 3%.
Safety and control: AFCI (activation required), anti-islanding, grid monitoring, and integrated EPM for zero export.

Advantages or Benefits

Greater consumption coverage in homes with heat pump, electric kitchen, or electric vehicle.
Design flexibility thanks to its two MPPTs, ideal for east/west or partially shaded roofs.
Compatibility with modern high-intensity panels, reducing losses due to current limitation.

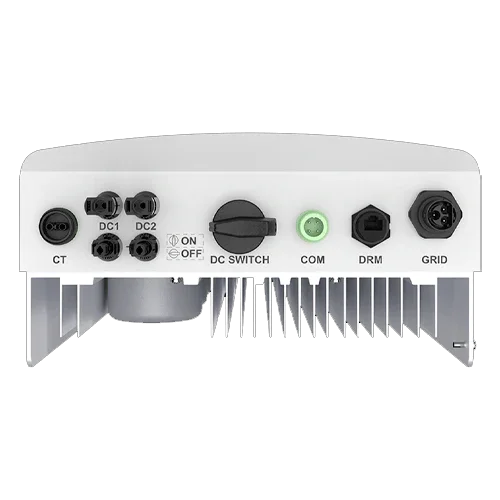

Simple installation and maintenance: MC4 connectors, quick AC plug, passive cooling, and low noise.
Safe outdoor operation with IP66, comprehensive protections, and AFCI to minimize fire risks.

Purpose or Applications

Aimed at high-power single-phase residential self-consumption and small businesses. Perfect for projects seeking surplus compensation or export limitation, maintaining high efficiency and continuous monitoring.

Technical Specifications

Nominal output power	6 kW (6 kVA)
Maximum output power	6 kW
Grid	1/N/PE, 220/230 V; 50/60 Hz
Nominal output current	≈27.3 A (at 220 V)
MPPT / Strings	2 / 2
U_DC max.	600 V
MPPT range	90–520 V
Startup voltage	120 V
I_in max. per MPPT	14 A (I_sc max. 22 A)
Max. / EU efficiency	97.7% / 97.1%
Power factor	>0.99 (adjustable 0.8 cap…0.8 ind)
Communication	RS485; optional: Wi-Fi / GPRS
Protections	AFCI, anti-islanding, DC/AC overvoltage, overcurrent, DC reverse polarity (activation required)
Protection rating	IP66
Dimensions / weight	310 × 543 × 160 mm / ≈12 kg
Cooling	Natural convection
Operating temperature	−25 °C … +60 °C

Compatibilities

Compatible with Solis connectivity modules (Wi-Fi/GPRS), energy meters via RS485, and standardized AC/DC protections. No optimizers required; works with conventional panels within the indicated electrical limits. Integrates export manager (EPM) to limit export.

The Solis S6-GR1P6K Single-Phase 6kW On-Grid Solar Inverter combines power, dual MPPT, high efficiency, and IP66 protection to offer reliable and safe self-consumption in demanding single-phase installations.
