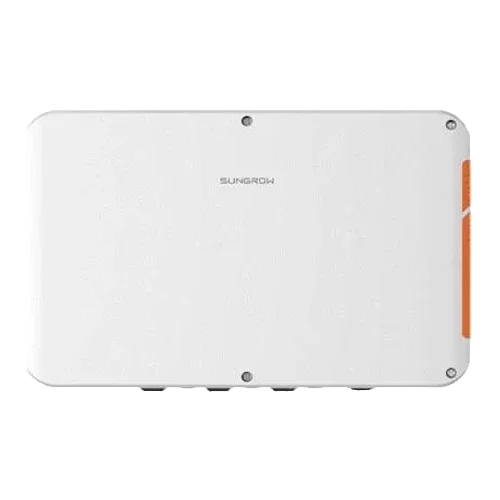

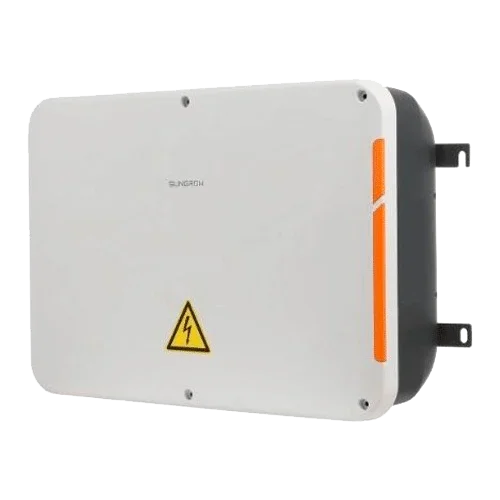

Sungrow COM100E Intelligent Communication Box
Modelo: COM100E- Sku: SUNGACC006
- Vendor: Sungrow
Specifications
Product Description
The Sungrow COM100E Smart Communication Box is a compact and versatile solution for solar installations that require monitoring and remote control. It incorporates the Logger1000B data logger and offers multiple communication interfaces: RS485, Ethernet RJ45, and dual-band WiFi connection (2.4/5 GHz). Its robust IP66 enclosure and compatibility with analog and digital sensors make it an ideal option for residential, commercial, and medium-sized industrial projects where effective system management is needed without complex wiring.
Main Features
- Dual band WiFi 2.4 GHz and 5 GHz (802.11 b/g/n/ac)
- 3 RS485 ports and 1 Ethernet RJ45 port
- 5 digital inputs (24 VDC) and 4 analog inputs (4–20 mA or 0–10 V)
- Integrated Logger1000B for real-time monitoring
- IP66 protection for outdoor installation
Advantages or Benefits
- Enables remote control without wiring thanks to integrated WiFi
- Designed for photovoltaic projects with up to 30 connected devices
- Facilitates batch firmware updates and parameter adjustments
- Direct integration with irradiance, wind, temperature sensors, etc.
- Lightweight and compact design, easy to install on wall or pole
Purpose or Applications
Ideal for residential, commercial, or medium-sized industrial photovoltaic installations that require a smart communication box without dependence on fiber or MPLC. Allows centralized management of inverters, energy meters, and sensors, with remote access via app or web platform.
Technical Specifications
| Model | COM100E |
| Connectable devices | Up to 30 |
| RS485 ports | 3 |
| Ethernet | 1 × RJ45, 10/100 Mbps |
| WiFi | 2.4/5 GHz (802.11 b/g/n/ac) |
| Digital inputs (DI) | 5 × max. 24 VDC |
| Analog inputs (AI) | 4 × 4–20 mA or 0–10 V |
| Protection | IP66 |
| Consumption | 20 W typical / 30 W max. |
| Dimensions | 460 × 315 × 126 mm |
| Weight | 6 kg |
Compatibilities
This product is compatible with: Sungrow single-phase, three-phase, hybrid, or grid-tied inverters, Sungrow energy meters via RS485, environmental sensors (irradiance, wind, temperature), and weather stations with digital or analog output.
Sungrow COM100E Smart Communication Box is a modern, compact, and powerful solution for efficient solar monitoring in medium-sized projects. It facilitates remote access and improves energy management without complications.
