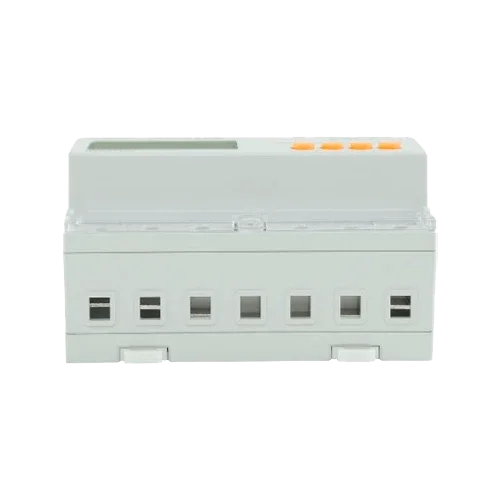

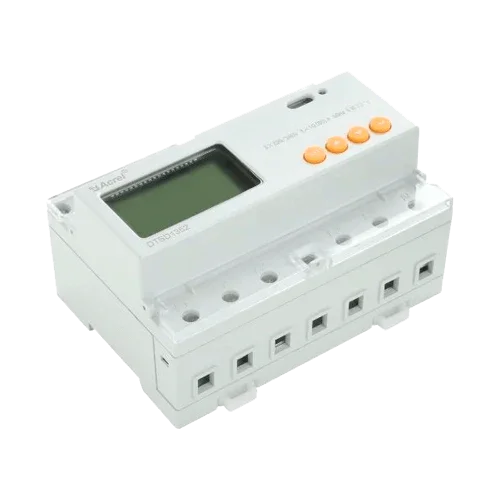

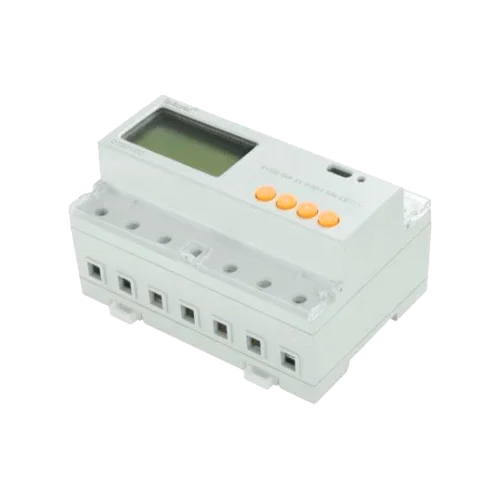

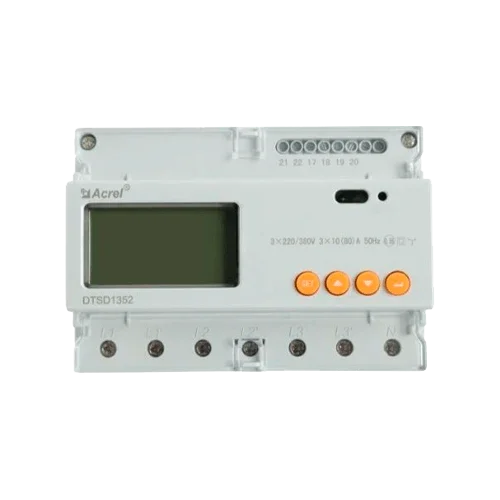

Sungrow DTSD1352 Three-Phase Energy Meter
Modelo: DTSD1352- Sku: SUNGACC004
- Vendor: Sungrow
Specifications
Product description
The Sungrow DTSD1352 Three-Phase Energy Meter is a high-precision bidirectional measuring device, designed to monitor active and reactive energy in solar installations with Sungrow three-phase inverters. Thanks to its RS485 interface and Modbus RTU protocol, it integrates easily into control and monitoring systems, enabling functions such as zero export, real-time energy balancing, and dynamic control of active and reactive power.
Main features
- Three-phase 4-wire measurement for active and reactive energy
- Maximum current up to 100 A depending on version
- Class 1 accuracy (active) and Class 2 (reactive)
- RS485 communication with Modbus RTU protocol
- DIN rail mounting in electrical panel
Advantages or benefits
- Enables zero export control in installations with Sungrow inverters
- Provides bidirectional measurement to detect consumption and injection
- Compatible with Sungrow communication boxes (COM100A, COM100E)
- Backlit LCD display for local reading
- Facilitates integration into monitoring and O&M systems
Purpose or applications
This meter is used in residential, commercial, or industrial three-phase installations that integrate Sungrow inverters. It is ideal for self-consumption systems with export limitation to the grid, centralized energy monitoring, or intelligent management of photovoltaic production.
Technical specifications
| Model | DTSD1352-C |
| System type | Three-phase 4-wire |
| Nominal voltage | 3×220/380 V or 3×230/400 V |
| Nominal / maximum current | 1.5(6) A or 5(100) A |
| Accuracy | Class 1 (active) / Class 2 (reactive) |
| Communication | RS485 (Modbus RTU) |
| Mounting | DIN rail (indoor) |
| Protection | IP51 |
| Dimensions | 160 × 112 × 71 mm |
| Operating temperature | –25 °C to +60 °C |
Compatibilities
This product is compatible with: SG5.0RT, SG6.0RT, SG8.0RT, SG10RT, SG12RT, SG15RT, SG20RT, SG33CX, SG50CX-P2, SG110CX, SG125CX-P2, SG250HX, SG350HX-20, SH5.0RT, SH6.0RT, SH8.0RT, SH10RT, SH15T, SH20T, SH25T.
Sungrow DTSD1352 Three-Phase Energy Meter is an essential component for monitoring the energy balance of your solar installation with maximum precision, reliability, and direct compatibility with Sungrow inverters.
