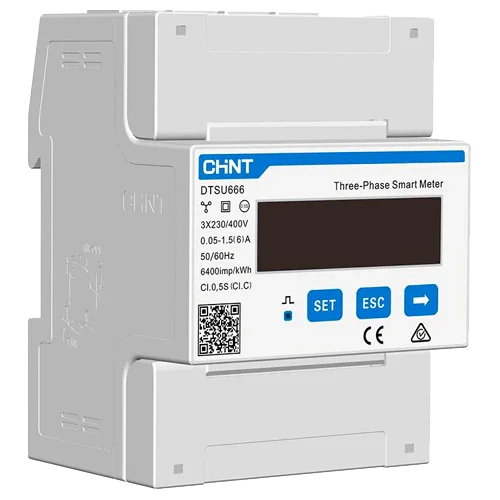

Sungrow DTSU666 Three-Phase Energy Meter
Modelo: DTSU666- Sku: SUNGACC005
- Vendor: Sungrow
Specifications
Product description
The Sungrow DTSU666 Three-Phase Energy Meter is a bidirectional digital meter designed to work with Sungrow inverters and self-consumption systems. Thanks to its RS485 interface and Modbus RTU protocol, it enables integration of dynamic zero export control functions, real-time monitoring, and precise measurement of energy flow in three-phase installations. It is available in direct measurement versions up to 100 A and variants with current transformers for higher power systems.
Main features
- Three-phase 4-wire measurement with bidirectional active/reactive reading
- RS485 communication interface with Modbus RTU protocol
- Maximum current up to 100 A (direct version) or higher with CT
- Backlit LCD display for local reading
- DIN rail mounting in indoor electrical panels
Advantages or benefits
- Enables zero export control with Sungrow inverters
- Compatible with COM100A and COM100E communication boxes
- Accurate measurement of consumption and generation to optimize self-consumption
- Quick and easy installation with direct or CT versions
- Adapted for residential, commercial, and industrial installations
Purpose or applications
The DTSU666 is designed for three-phase solar installations with Sungrow inverters. It is used in self-consumption systems, industrial or commercial plants that require export control to the grid, and as a metering point in installations with centralized energy management.
Technical specifications
| Model | DTSU666 |
| System type | Three-phase 4-wire |
| Nominal voltage | 3×220/380 V or 3×230/400 V |
| Nominal / maximum current | 1.5(6) A / 5(80–100) A |
| Accuracy | Class 1 (active), Class 2 (reactive) |
| Communication | RS485 (Modbus RTU) |
| Mounting | DIN rail |
| Protection | IP51 (indoor) |
| Dimensions | 100 × 72 × 65 mm |
| Operating temperature | –25 °C to +60 °C |
Compatibilities
This product is compatible with: SG5.0RT, SG6.0RT, SG8.0RT, SG10RT, SG12RT, SG15RT, SG20RT, SG33CX, SG50CX-P2, SG110CX, SG125CX-P2, SG250HX, SG350HX-20, SH5.0RT, SH6.0RT, SH8.0RT, SH10RT, SH15T, SH20T, SH25T.
Sungrow DTSU666 Three-Phase Energy Meter is an efficient, accurate, and flexible solution for integrating energy measurement and dynamic control in any three-phase system with Sungrow inverters.
