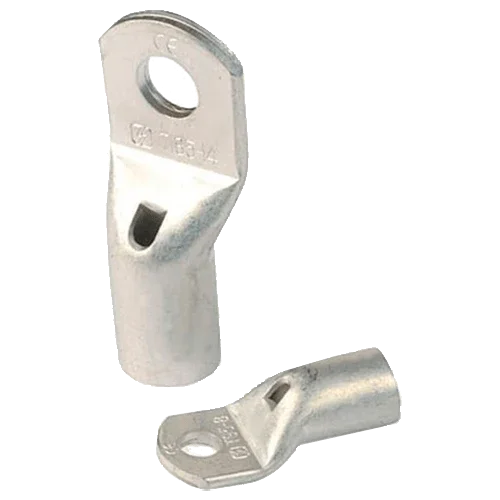

Terminal Tubular Sofamel 10 mm² M8 T-10/8
Modelo: T-10/8- Sku: SOFAACC025
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Tubular Terminal 10 mm² M8 T-10/8 is designed to terminate 10 mm² copper cables and secure them using M8 screws on busbars, terminals, or power equipment. Its electrolytic copper construction with uniform tin plating provides very low contact resistance, high protection against aggressive environments, and excellent thermal stability in continuous service. The inspection hole allows visual confirmation of correct conductor insertion before crimping, ensuring a safe and repeatable installation in demanding professional applications.
Main Features
- Accepted cross-section: 10 mm² for flexible or rigid copper conductors.
- Mounting hole: standard M8 for bolt/screw.
- Material: electrolytic copper with tinned finish.
- Inspection hole for insertion control and crimping quality.
- Tubular geometry that maximizes contact surface and reduces heating.
- IEC 61238-1-1 compliance for compression joints.
Advantages or Benefits
- Superior electrical efficiency thanks to low contact resistance.
- Greater resistance to corrosion and sulfation due to its tin coating.
- Quick installation with common crimping tools, reducing assembly time.
- Mechanical reliability against vibrations in panels, vehicles, and industrial environments.
- Long service life in DC/AC power systems, storage, and photovoltaics.
Purpose or Applications
Ideal for medium power connections: distribution busbars, enclosures and boxes, NH fuses, disconnectors and contactors, 24/48 V battery banks, inverters and chargers, and connections in residential or commercial solar systems requiring an M8 terminal and 10 mm² cross-section.
Technical Specifications
| Model | T-10/8 |
| Type | Tinned copper tubular terminal |
| Conductor cross-section | 10 mm² |
| Screw hole | M8 |
| Inspection hole | Yes |
| Finish | Tinned (Sn) anti-corrosion |
| Material | Electrolytic copper |
| Standard | IEC 61238-1-1 (compression) |
| Recommended tool | Hexagonal/oval die crimping tool for 10 mm² |
| Application | Connection to busbar/terminals with M8 screw |
Compatibilities
Direct compatibility: 10 mm² copper cables; terminals, busbars, and equipment with M8 mounting.
Compatible accessories: heat shrink, M8 flat and spring washers, M8 nuts, protective grease, and crimping tools for tubular terminals.
With the Sofamel Tubular Terminal 10 mm² M8 T-10/8 you will obtain high-quality, safe, and durable electrical connections, optimized for power applications in professional environments.
