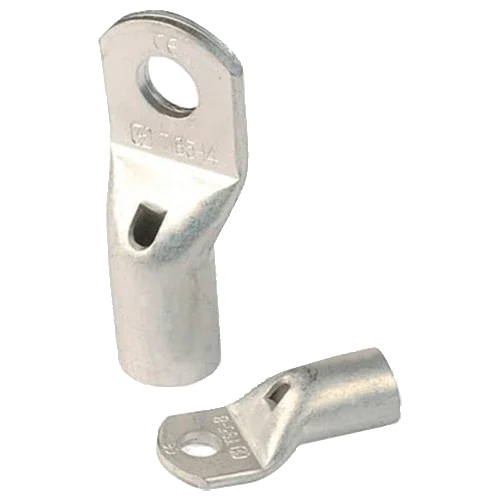

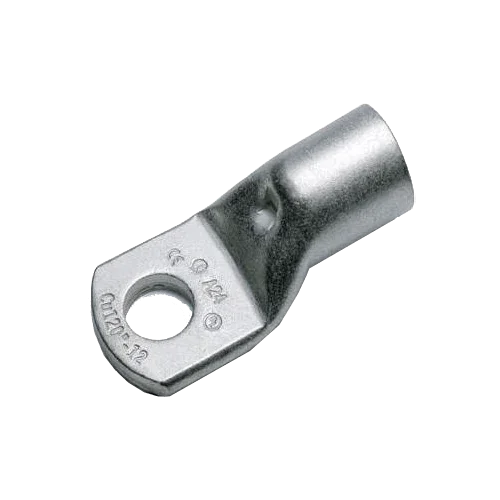

Terminal Tubular Sofamel 16 mm² M10 T-16/10
Modelo: T-16/10- Sku: SOFAACC028
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Tubular Terminal 16 mm² M10 T-16/10 is a high-quality compression termination for 16 mm² copper conductors, secured with M10 screws. Manufactured from electrolytic copper and protected with a uniform tin plating, it offers very low contact resistance and high protection against corrosion, ensuring stable connections even in demanding environments. The tubular design maximizes the contact surface, reduces heating under load, and improves installation reliability. The inspection hole makes it easy to check the complete insertion of the conductor before crimping, allowing for quick and consistent execution on site.
Main Features
- Accepted cross-section: 16 mm² (flexible or rigid copper).
- Fixing hole: M10 for standard bolt/screw.
- Base material: electrolytic copper with tin-plated anti-corrosion finish.
- Inspection hole for visual verification of the conductor.
- Tubular geometry that increases the contact surface and reduces voltage drop.
- Compliance with IEC 61238-1-1 for compression joints.
Advantages or Benefits
- Superior electrical efficiency thanks to minimal contact resistance.
- Longer service life in humid or saline environments due to its tin coating.
- Quick and repeatable assembly with standard crimping tools; fewer reworks and stoppages.
- Mechanical reliability against vibrations in panels, machinery, and electric mobility.
- Secure connection in medium/high power applications with M10 screws.
Purpose or Applications
Suitable for busbars, protection and disconnector terminals, contactors, NH fuses, 24/48 V battery banks, inverters/chargers, UPS, and AC/DC distribution in residential, commercial, and industrial installations. Recommended for photovoltaics, storage, automation, and marine or mobile environments where robustness and thermal stability are required.
Technical Specifications
| Model | T-16/10 |
| Type | Tinned copper tubular terminal |
| Conductor cross-section | 16 mm² |
| Screw hole | M10 |
| Inspection hole | Yes |
| Material | Electrolytic copper |
| Finish | Tinned (Sn) anti-corrosion |
| Standard | IEC 61238-1-1 (compression) |
| Recommended crimping | Hexagonal/oval die for 16 mm² |
| Typical application | Connection to bars/terminals with M10 fixing |
Compatibilities
Direct compatibility: 16 mm² copper cables; terminals, bars, and equipment with M10 screws.
Compatible accessories: heat shrink tubing, flat and Grower M10 washers, M10 nuts, anti-oxidant compounds, and crimping tools for tubular terminals.
The Sofamel Tubular Terminal 16 mm² M10 T-16/10 is the professional solution for safe, efficient, and durable electrical connections in power and distribution projects.
