Terminal Tubular Sofamel 25 mm² M10 T-25/10
Modelo: T-25/10- Sku: SOFAACC030
- Vendor: Sofamel
Specifications
Product Description

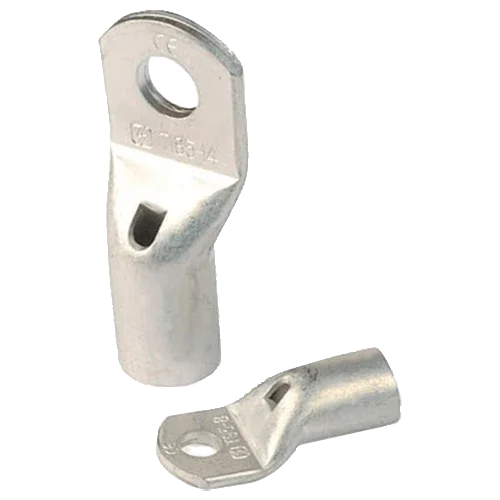

The Sofamel Tubular Terminal 25 mm² M10 T-25/10 is a professional compression termination for 25 mm² copper cables that are secured using M10 screws. Its construction in electrolytic copper with tin plating ensures minimal contact resistance and excellent protection against corrosion, even in humid or saline environments. The tubular design distributes crimping forces evenly, maximizes the contact surface, and reduces heating under load, while the inspection hole allows verification of conductor insertion before crimping, providing speed and reliability during assembly.
Main Features
- Accepted section: 25 mm² for rigid or flexible copper conductors.
- Mounting hole: M10 compatible with standard bolts and screws.
- Base material: electrolytic copper with tin-plated anti-corrosion finish.
- Inspection hole for visual control of cable insertion.
- Tubular geometry that increases the contact surface and reduces voltage drop.
- Crimping according to IEC 61238-1-1 for compression joints.
Advantages or Benefits
- Stable electrical connections, with minimal losses and higher system efficiency.
- Long service life thanks to homogeneous tin plating that resists oxidation and sulfation.
- Quick and repeatable installation with hexagonal or oval dies; fewer reworks.
- High mechanical strength against vibration in panels, machinery, and electric mobility.
- Facilitates maintenance and inspections thanks to the inspection hole.
Purpose or Applications
Ideal for busbars, protection terminals, disconnectors and contactors, NH fuses, inverters and chargers, UPS and 24/48 V battery banks in residential, commercial, and industrial installations. Widely used in photovoltaics and energy storage, as well as in industrial automotive and marine environments where M10 mounting and 25 mm² section are required.
Technical Specifications
| Model | T-25/10 |
| Type | Tin-plated copper tubular terminal |
| Conductor section | 25 mm² |
| Screw hole | M10 |
| Inspection hole | Yes |
| Material | Electrolytic copper |
| Finish | Tin-plated (Sn) anti-corrosion |
| Standard | IEC 61238-1-1 (compression) |
| Tool | Crimping tool with hexagonal/oval die for 25 mm² |
| Application | Connection to bars/terminals with M10 mounting |
Compatibilities
Direct compatibility: 25 mm² copper cables; terminals, bars, and equipment with M10 screw.
Compatible accessories: heat shrink sleeves, flat and Grower M10 washers, M10 nuts, protective greases, and crimping tools for tubular terminals.
The Sofamel Tubular Terminal 25 mm² M10 T-25/10 provides a safe, efficient, and durable electrical connection in power and professional photovoltaic projects.
