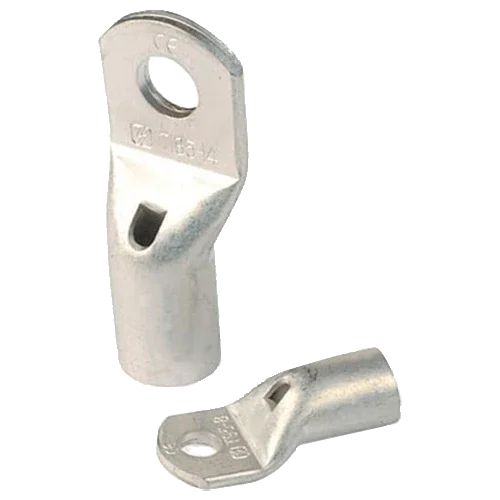

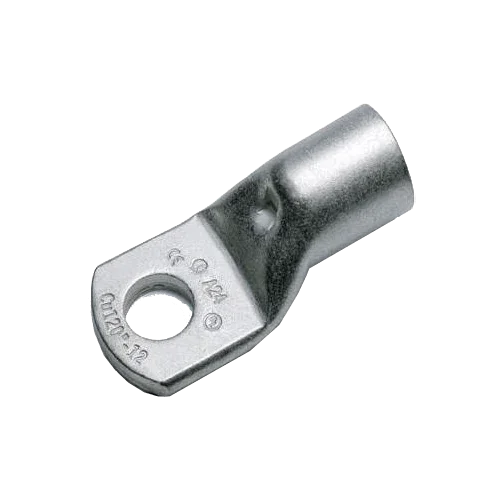

Terminal Tubular Sofamel 25 mm² M8 T-25/8
Modelo: T-25/8- Sku: SOFAACC029
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Tubular Terminal 25 mm² M8 T-25/8 is designed to terminate 25 mm² copper conductors and secure them with M8 screws on busbars, terminals, and power equipment. Its electrolytic copper body with tin plating offers extremely low contact resistance and excellent protection against oxidation, ensuring stable connections in continuous service. The tubular design distributes crimping pressure and maximizes the contact surface, reducing heating and voltage drop. It also incorporates an inspection hole to verify correct cable insertion before crimping, speeding up assembly and improving installation quality.
Main Features
- Accepted cross-section: 25 mm² (rigid or flexible copper).
- Mounting hole: M8 compatible with standard bolts/screws.
- Material: electrolytic copper with tin-plated anti-corrosion finish.
- Inspection hole for visual assembly check.
- Tubular geometry that increases the contact surface and improves thermal dissipation.
- Standards compliance: IEC 61238-1-1 (compression connections).
Advantages or Benefits
- Very low resistance joints that improve system efficiency.
- Durable protection against humid, saline, or vibrating environments thanks to tin plating.
- Quick and repeatable installation with standard crimping tools; reduction of errors and installation time.
- Mechanical robustness for power applications in panels, machinery, and electric mobility.
- Full compatibility with equipment using M8 screws.
Purpose or Applications
Recommended for busbars, power protections, contactors, NH fuses, interconnections in 24/48 V battery banks, inverters and chargers, UPS, and DC/AC distribution in residential, commercial, and industrial solar installations. Excellent choice in photovoltaic and storage systems where 25 mm² cross-section and M8 mounting are required.
Technical Specifications
| Model | T-25/8 |
| Type | Tin-plated copper tubular terminal |
| Conductor cross-section | 25 mm² |
| Screw hole | M8 |
| Inspection hole | Yes |
| Material | Electrolytic copper |
| Finish | Tin-plated (Sn) anti-corrosion |
| Standard | IEC 61238-1-1 (compression) |
| Recommended crimping | Hexagonal/oval die for 25 mm² |
| Typical application | Connection to busbars/terminals with M8 mounting |
Compatibilities
Direct compatibility: 25 mm² copper cables; terminals and busbars with M8 screw; power equipment with M8 eyelet.
Compatible accessories: heat shrink tubing, M8 flat and spring washers, M8 nuts, anti-oxidant compounds, and certified crimping tools for tubular terminals.
The Sofamel Tubular Terminal 25 mm² M8 T-25/8 provides safe, efficient, and durable connections, optimized for power and professional photovoltaic applications.
