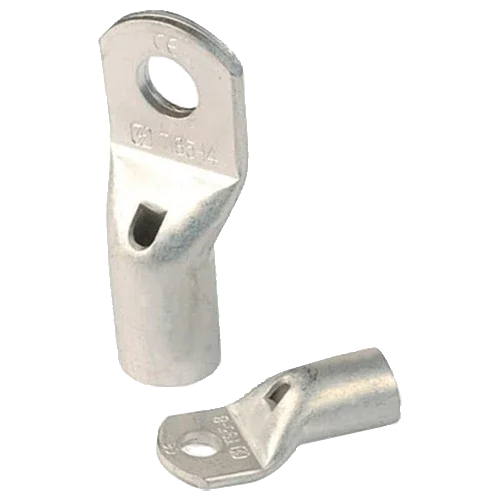

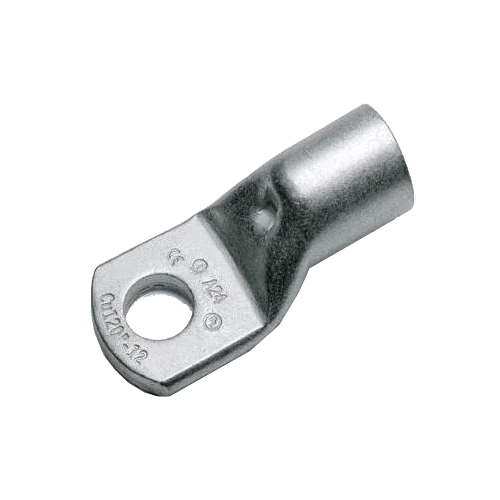

Terminal Tubular Sofamel 35 mm² M10 T-35/10
Modelo: T-35/10- Sku: SOFAACC032
- Vendor: Sofamel
Specifications
Product Description
The Sofamel Tubular Terminal 35 mm² M10 T-35/10 is a high-quality compression termination designed for 35 mm² copper cables that are secured with M10 screws. Manufactured from electrolytic copper with a uniform tin plating, it ensures very low contact resistance and excellent protection against corrosion, even in demanding environments. Its tubular design maximizes the contact surface, improves thermal dissipation, and reduces voltage drop during continuous operation. It features an inspection hole to verify conductor insertion before crimping, providing speed and safety for professional assembly.
Main Features
- Accepted section: 35 mm² (flexible or rigid copper).
- Fixing hole: M10 for standard bolt/screw.
- Base material: electrolytic copper with anti-corrosion tin-plated finish.
- Inspection hole for visual check prior to crimping.
- Tubular geometry with large contact surface and reduced heating.
- Compression connection according to IEC 61238-1-1.
Advantages or Benefits
- Stable, low-loss connections that improve installation efficiency.
- Long-lasting protection against oxidation and sulfation thanks to homogeneous tin plating.
- Quick and repeatable assembly with standard crimping tools; fewer reworks.
- High mechanical robustness against vibrations and moderate pulling forces.
- Long service life in power panels, energy storage, and photovoltaic applications.
Purpose or Applications
Ideal for busbars, protection terminals and disconnectors, NH fuses, contactors, interconnections of 48 V battery banks, inverters and chargers, UPS, and AC/DC distribution in residential, commercial, and industrial installations. Recommended for marine environments, electric mobility, and infrastructures where M10 fixing and 35 mm² section are required.
Technical Specifications
| Model | T-35/10 |
| Type | Tin-plated copper tubular terminal |
| Conductor section | 35 mm² |
| Screw hole | M10 |
| Inspection hole | Yes |
| Material | Electrolytic copper |
| Finish | Tin-plated (Sn) anti-corrosion |
| Standard | IEC 61238-1-1 (compression) |
| Recommended crimping | Hexagonal/oval die for 35 mm² |
| Typical application | Connection to bars/terminals with M10 fixing |
Compatibilities
Direct compatibility: 35 mm² copper cables; terminals and bars with M10 screw; power equipment with M10 eyelet.
Compatible accessories: heat shrink sleeve, flat and Grower M10 washers, M10 nuts, protective grease, and compression crimping tools for tubular terminals.
The Sofamel Tubular Terminal 35 mm² M10 T-35/10 is a professional solution for safe, efficient, and durable electrical connections in modern power and distribution applications.
