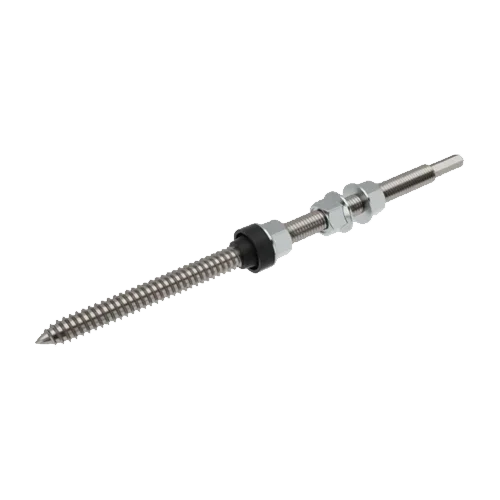

Suspension Screw M10x200 Stainless Steel A2

Product Description

The M10x200 Suspension Screw Stainless Steel A2 is a professional component designed for structural fixings in solar installations on pitched roofs, wooden battens, or decking. Manufactured from A2 stainless steel (AISI 304), this screw offers high mechanical strength and excellent durability against corrosion, making it ideal for demanding outdoor environments, including coastal areas or locations with high humidity.

Main Features

• Double thread: metric M10 + wood thread
• Total length of 200 mm, ideal for insulated roofs
• Includes EPDM washer, 2 hexagonal nuts, and metal washer
• Manufactured from A2 stainless steel (AISI 304), suitable for outdoor use
• Recommended drilling diameter: Ø 6–8 mm in wood
• Compatible with adapters, ball joints, and M10 bases for solar structures

Advantages or Benefits

• Ensures a solid and durable fixing without the need for resins
• Prevents leaks thanks to the included EPDM washer
• Ideal for adjustable structures or systems with ball joints
• Easy installation with open-end wrench or ratchet tube (M17/M19)
• Standard component in mounting kits for pitched roofs

Purpose or Applications

This suspension screw is designed to fix support structures for solar panels on tile roofs or wooden surfaces. It is a perfect solution in residential or commercial installations where direct fixing to battens is required, without using plugs or chemicals. Its use is common in coplanar, inclined, or adjustable M10 base structures.

Technical Specifications

Compatibilities

This product is compatible with: inclined or coplanar solar structures on wood, adjustable bases with M10 thread, aluminum supports and rails with M10 fixing, M10 structure ball joints and adapters.

M10x200 Suspension Screw Stainless Steel A2 is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
