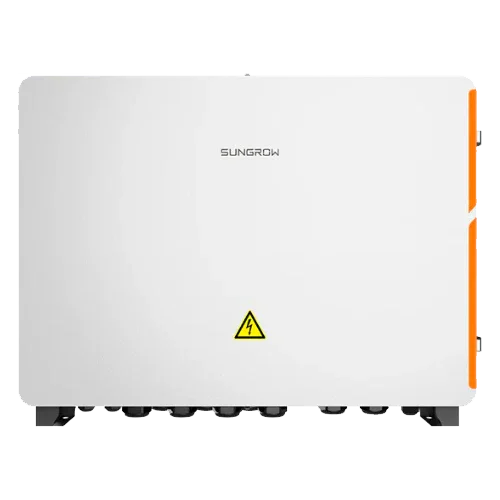

Sungrow EMU200A Energy Management Unit
Modelo: EMU200A- Sku: SUNGACC010
- Vendor: Sungrow
Specifications
Product description
The Sungrow EMU200A Energy Management Unit is an advanced monitoring and control system designed for large-scale photovoltaic installations. With support for up to 300 devices and multiple communication protocols such as RS485, Ethernet, and MPLC, the EMU200A integrates key functions for efficient, safe, and automated operation of solar plants. Its robust industrial design with IP66 protection, electrical isolation, and surge protectors makes it a reliable solution for the most demanding environments.
Main features
- Compatible with RS485, Ethernet (5 ports), and MPLC (up to 80 devices per channel)
- Includes Logger4000, SPD, MCCB, and options for PID&ISO modules, fiber optic, and I/O
- Supports active and reactive power control with GOOSE protocol (dispatch in 30 ms)
- IP66 protection, wall, rack, or floor mounting, for indoor or outdoor use
- Remote management via Web, parameter adjustment, and inverter firmware updates
- Input voltage from 100 to 277 V AC and maximum consumption up to 450 W with PID modules
Advantages or benefits
- Enables centralized management of large solar installations with up to 300 devices
- Optimizes O&M with remote access, diagnostics, and batch updates
- Facilitates regulatory compliance thanks to ultra-fast reactive power control
- High reliability in extreme conditions: -30 °C to +60 °C and up to 4000 m altitude
- Extensive connectivity: meters, sensors, weather stations, and fiber optic
Purpose or applications
The EMU200A is designed for commercial and industrial grid-connected photovoltaic systems where detailed monitoring, SCADA or fast dispatch system integration, and centralized control of multiple inverters and devices are required. It is ideal for large-scale solar plants using Sungrow three-phase inverters such as the SG50CX-P2, SG110CX, SG125CX-P2, SG250HX, or SG350HX models.
Technical specifications
| Management capacity | Up to 300 devices |
| Protocols | RS485, Ethernet, MPLC, GOOSE |
| Power consumption | Max. 450 W (with 2 PID modules) |
| Operating temperature | -30 °C to +60 °C |
| Protection | IP66 |
| Dimensions | 860 × 680 × 275 mm |
Compatibilities
This product is compatible with: Sungrow SG50CX-P2, Sungrow SG110CX, Sungrow SG125CX-P2, Sungrow SG250HX, Sungrow SG350HX.
Sungrow EMU200A Energy Management Unit is the ultimate tool for controlling, monitoring, and optimizing the performance of large solar plants. Robust, scalable, and ready for the industry's most demanding standards.
