Santoprene Valves Shurflo 94-232-00 Replacement Series 2088
Modelo: 94-232-00- Sku: SHURREP007
- Vendor: Shurflo
Specifications
Product Description

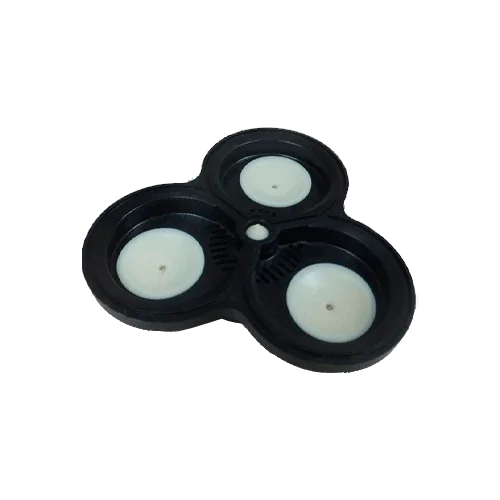

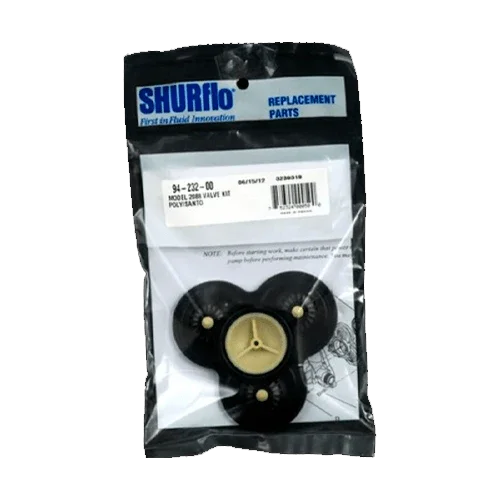

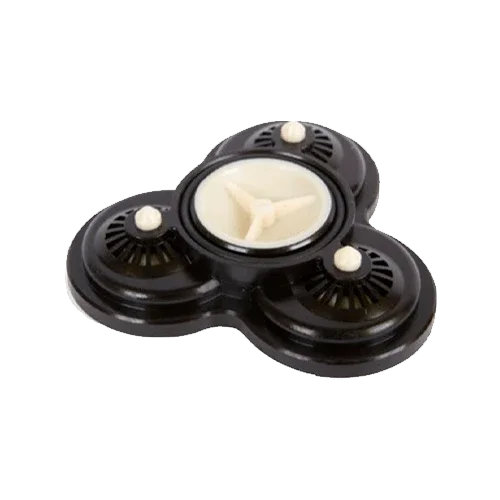

The Shurflo Santoprene Valve Kit 94-232-00 is the original replacement for Shurflo 2088 series diaphragm pumps. These valves (inlet and outlet) regulate the flow direction and seal each chamber of the pump head. The Santoprene material provides elasticity, shape memory, and chemical resistance, ensuring a secure seal with low pressure loss. If you notice irregular flow, water returning to the tank, slow priming, or the pump “cycles” without demand, replacing the valves restores watertightness and nominal flow delivery.
Main Features
- OEM reference 94-232-00: perfect fit for 2088 pump heads.
- Santoprene elastomer: flexibility, quick sealing, and long service life.
- Factory seats and geometry for tight sealing and reduced pressure loss.
- Quiet and stable operation over thousands of cycles.
- Easy installation inside the pump head; no adjustments required.
- Key replacement to restore pressure, flow, and immediate response.
Advantages or Benefits
- Restored watertightness: eliminates internal leaks and backflow.
- Faster start-up: maintains the water column and reduces priming time.
- Less strain on the motor and pressure switch: extends system life.
- Consistent performance: stable flow and less cavitation/noise.
- Economical and quick service with original replacement parts.
Purpose or Applications
Maintenance of Shurflo 2088 pumps in motorhomes, marine applications, homes, light irrigation, reverse osmosis, and small industrial systems where the reliability of the internal check valve is essential.
Technical Specifications
| Reference | 94-232-00 |
| Type | Santoprene valve kit (inlet/outlet) |
| Compatibility | Shurflo 2088 series pumps |

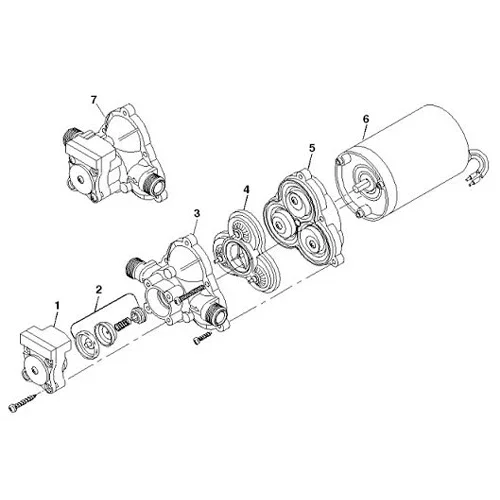

| Location in exploded view | Part no. 3 (valve kit) |
| Material | Santoprene (high-durability elastomer) |
| Installation | Direct placement in the pump head; check seat and cleanliness |
| Associated components | Housing 94-231-30 / 94-231-20 and diaphragm with eccentric (part no. 4) |
Compatibilities
Designed for the 2088 series pump head. For comprehensive repairs, it is recommended to combine with a new diaphragm and check the condition of the pressure switch or housing according to the official exploded view.
With the Shurflo Santoprene Valves 94-232-00, your 2088 pump regains internal sealing, stable flow, and the quiet operation characteristic of equipment in optimal condition.
