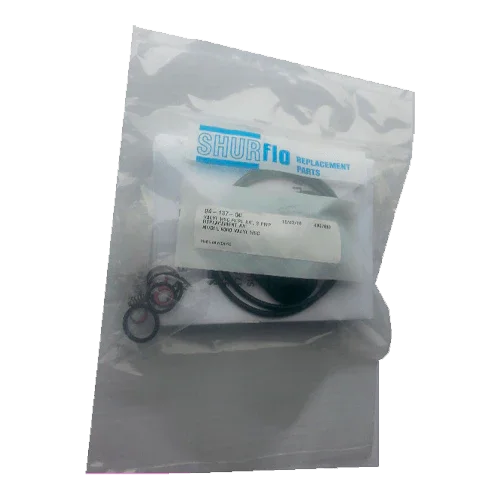

Shurflo Valves 94-137-00 Replacement for Pump 9300

Product Description

The Shurflo 94-137-00 Valve Set is the official replacement for submersible pumps of the 9300 series. This set renews the hydraulic core of the pump (valves and by-pass elements), restoring the original flow rate and pressure in solar pumping and potable water installations.

Main Features

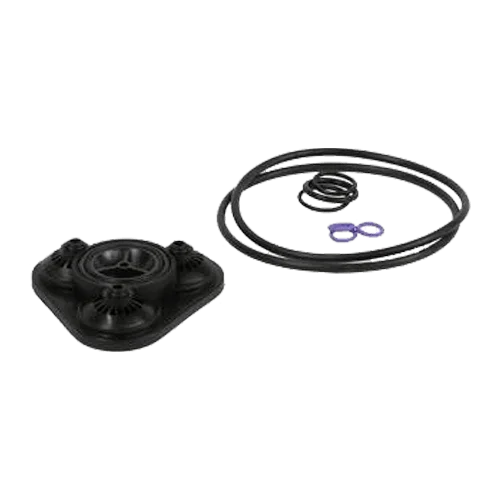

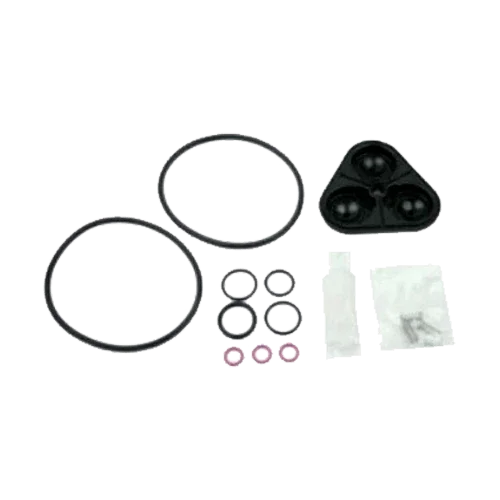

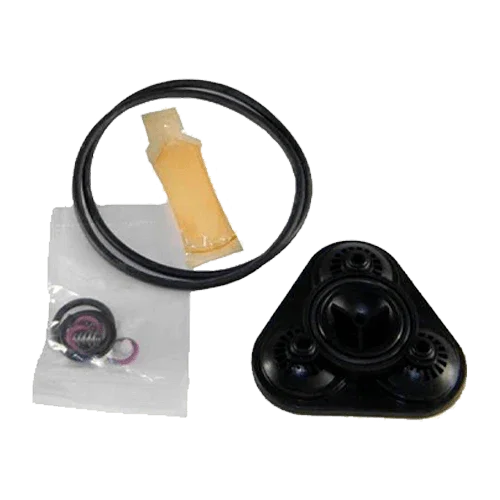

• Complete kit of valves and associated seals for direct replacement in the upper housing.
• Calibrated by-pass that protects the circuit against overpressure and maintains system stability.
• Guaranteed compatibility with Shurflo 9300 pumps (models 9325) without additional adjustments.
• High-strength materials suitable for continuous operation under immersion.
• Restores flow performance (up to ~443 l/h at 24 V depending on installation configuration) under nominal conditions.

Advantages or Benefits

• Restores hydraulic performance after natural wear from use or the presence of particles.
• Reduces cavitation, pressure losses, and failed starts, extending motor life.
• Minimizes downtime: simple assembly with accessible screws.
• Improves the efficiency of the solar installation by stabilizing the pump's operating point.

Purpose or Applications

Ideal for wells, irrigation, elevated tanks, and domestic supply with photovoltaic solar energy. Recommended for scheduled maintenance or when a drop in flow/pressure is detected in Shurflo 9300 pumps.

Technical Specifications

Compatibilities

Direct compatibility: Shurflo 9300 series submersible pumps (models 9325).

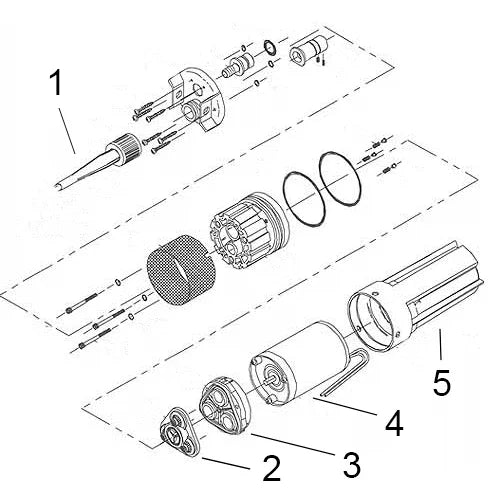

Related accessories/spare parts: Connector 94-136-00, Diaphragm 94-138-00, Motor 94-139-00, Housing 94-140-00, Gaskets 94-142-00.

The Shurflo 94-137-00 Valves restore your 9300 pump to the performance and reliability required for stable water supply in demanding solar systems.
