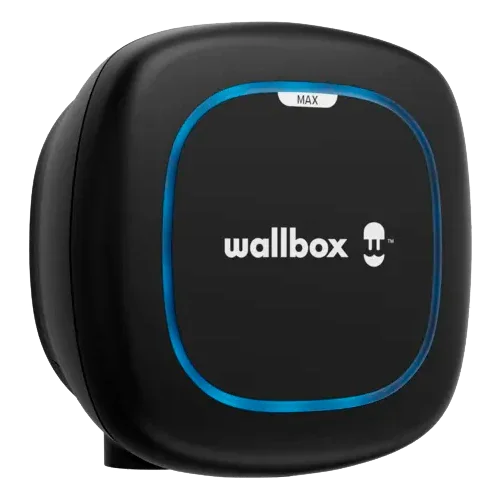

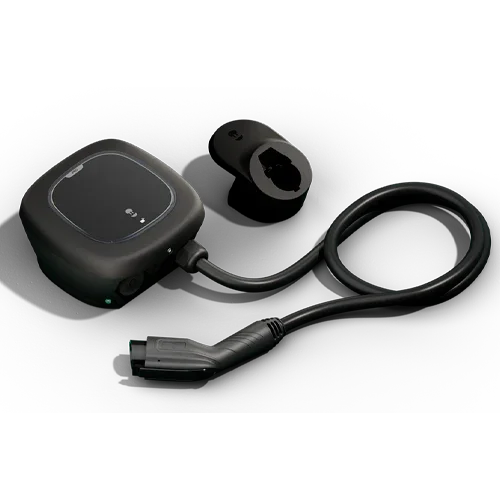

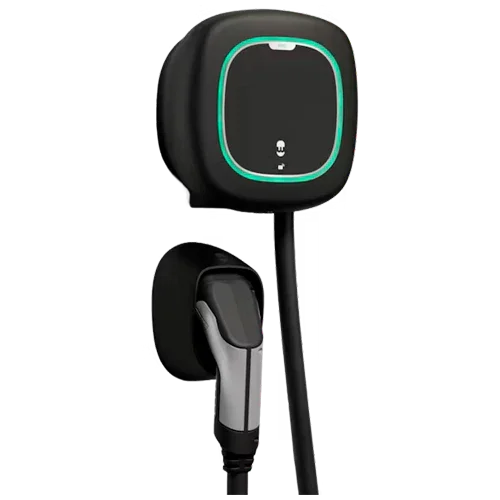

VE Wallbox Pulsar Max Charger 22kW 5m Cable Black
Modelo: Pulsar Max 22kW Cable 5m Negro- Sku: WALLCAR006
- Vendor: Wallbox
Specifications
Product Description
The Wallbox Pulsar Max 22kW Cable 5m Black is a high-performance three-phase AC charging point that combines power, compact size, and advanced connectivity. With a capacity of up to 22 kW (400 V, 32 A, 3-phase), a fixed 5 m Type 2 cable, and Wi-Fi/Bluetooth communications, it allows comprehensive management from the Wallbox app and portal. Its IK10 chassis and IP55 ingress protection make it ideal for homes, private parking, and small businesses seeking fast charging and efficient integration with the electrical installation and, if present, the property's photovoltaic system.
Main Features
- Power up to 22 kW in three-phase (400 V, 32 A, 3-phase); adjustable current to match available power.
- Tethered Type 2 5 m cable (IEC 62196-2) and operation in Mode 3 (IEC 61851-1).
- Wi-Fi and Bluetooth connectivity with control from the Wallbox app/portal; RGB LED status ring.
- Energy management: integrated static load balancing, Dynamic Load Management and Solar Charging via external energy meter.
- Safety: DC residual current detection 6 mA (RDC-DD) and use with type A residual current device on the supply line.
- Robust and compact design: IP55 / IK10, operation −30 °C to 50 °C; approximate dimensions 198×201×99 mm.
Advantages or Benefits
- Faster charging thanks to 22 kW, perfect for small fleets, businesses, or homes with three-phase supply.
- Savings and stability: adjusts current in real time to avoid overloads and uses off-peak hours to reduce costs.
- Smart self-consumption: integrates the PV installation and uses surplus energy with solar mode and the energy meter.
- Total control from your mobile: locking, users, scheduling, reports, and session logging in the Wallbox cloud.
- Long service life due to its IK10 and IP55 robustness, suitable for continuous use in residential and light commercial environments.
Purpose or Applications
Designed for three-phase homes, private parking, and small businesses, the Pulsar Max 22 kW black with 5 m cable is ideal for fast daily charging of electric vehicles with a Type 2 connector, as well as for photovoltaic projects where prioritizing self-generated energy is desired.
Technical Specifications
| Charging power | Up to 22 kW (3-phase) |
| Voltage / Frequency | 400 V AC ±10 % / 50–60 Hz |
| Nominal current | 32 A three-phase (adjustable) |
| Connector / Mode | Type 2 Tethered, Mode 3 (IEC 61851-1 / IEC 62196-2) |
| Cable length | 5 m |
| Protections | IP55 / IK10, DC 6 mA detection; use with RCCB type A; upstream circuit breaker protection |
| Energy management | Static load balancing; Dynamic Load Management and Solar Charging with external meter |
| Communications | Wi-Fi, Bluetooth; control from Wallbox app/portal |
| Indicators | RGB LED halo and notifications in app |
| Dimensions / Weight | ≈198×201×99 mm (unit) / reduced weight |
| Temperature range | −30 °C…50 °C (derating at high temperatures) |
| Standards | CE marking and applicable IEC standards |
Compatibilities
Vehicles with Type 2 socket. Recommended accessories: energy meter for dynamic load balancing and solar mode, suitable AC protections (RCCB type A and circuit breaker), pedestal or stand if installed outdoors in a protected area.
The Wallbox Pulsar Max 22kW Cable 5m Black combines three-phase power, minimal size, and intelligent control for fast, safe, and efficient charging in residential and light commercial environments.
