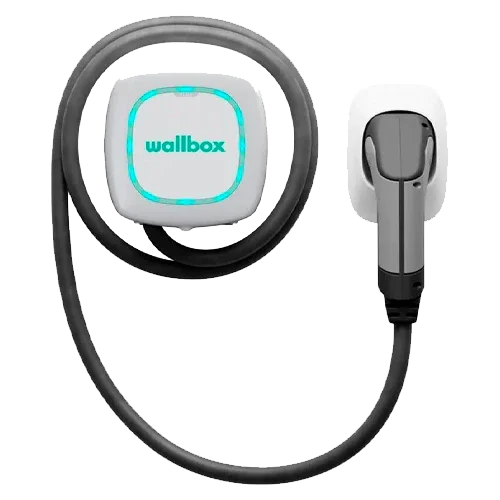

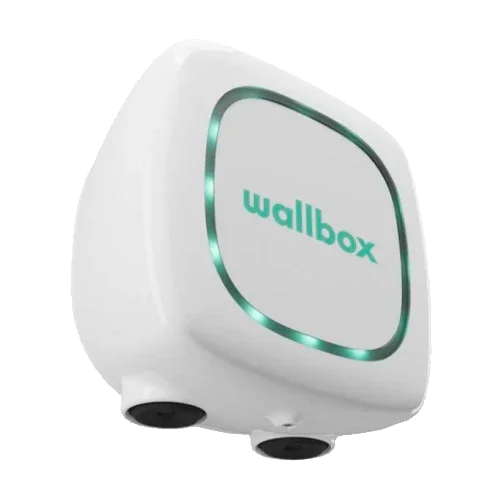

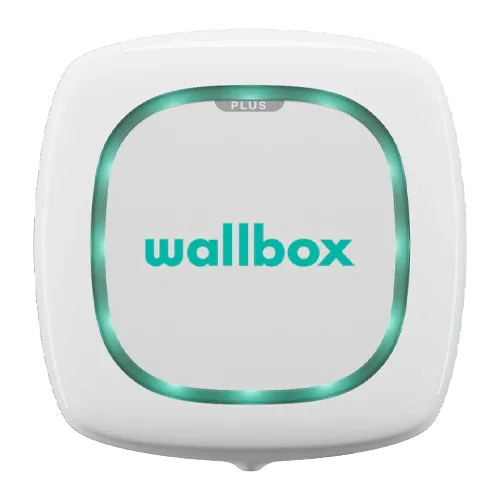

VE Wallbox Pulsar Max Charger 22kW 7m Cable White
Modelo: Pulsar Max 22kW Cable 7m Blanco- Sku: WALLCAR007
- Vendor: Wallbox
Specifications
Product Description
The Wallbox Pulsar Max 22kW Cable 7m White is a high-performance electric vehicle charger that combines three-phase power, ultra-compact design, and full connectivity. With up to 22 kW in AC (400 V, 32 A, 3-phase) and a fixed 7 m Type 2 cable, it makes it easy to connect the vehicle even when the charging point is far from the socket. Its robust housing with IP55/IK10 rating ensures durability in garages and sheltered outdoor areas, while Wi-Fi and Bluetooth communications allow control from the app and Wallbox portal to schedule charging times, adjust current, and activate efficiency modes such as charging with photovoltaic surplus.
Main Features
- Up to 22 kW three-phase (400 V, 32 A, 3-phase) with adjustable current to adapt the power to the installation.
- Fixed 7 m Type 2 cable (IEC 62196-2) in Mode 3 (IEC 61851-1) for greater connection convenience.
- Integrated connectivity: Wi-Fi and Bluetooth with control from the Wallbox app/portal and status LED halo.
- Energy management: static load balancing, Dynamic Load Management and Solar Charging via external meter.
- Advanced safety: detection of residual DC current DC 6 mA (RDC-DD) and use with type A RCD.
- Robust and compact design: IP55 / IK10, −30 °C to 50 °C, size 198×201×99 mm (unit without cable).
Advantages or Benefits
- Faster charging thanks to 22 kW, ideal for three-phase homes, businesses, and private parking.
- Savings and stability: adjust the current to avoid overloads and schedule charging during off-peak rates.
- Smart self-consumption: the solar mode allows prioritizing photovoltaic surplus with a meter.
- Ease of use: the 7 m cable extends reach and facilitates connection in different positions.
- Total control from your mobile: locking, users, consumption reports, and session logging.
Purpose or Applications
Designed for homes with three-phase supply, small businesses, and private parking seeking to reduce charging times and optimize available energy. Its compatibility with surplus management makes it the perfect option for installations with photovoltaics.
Technical Specifications
| Charging power | Up to 22 kW (three-phase) |
| Voltage / Frequency | 400 V AC ±10 % / 50–60 Hz |
| Nominal current | 32 A (adjustable) |
| Connector / Mode | Type 2 Tethered, Mode 3 (IEC 61851-1 / IEC 62196-2) |
| Cable length | 7 m |
| Protections | IP55 / IK10, DC 6 mA detection (RDC-DD); use type A RCCB and upstream circuit breaker |
| Energy management | Static load balancing; Dynamic Load Management and Solar Charging with external MID meter |
| Communications | Wi-Fi, Bluetooth; control from app and Wallbox portal |
| Indicators | RGB LED halo and notifications in app |
| Approx. dimensions | 198×201×99 mm (unit without cable) |
| Temperature range | −30 °C to 50 °C (with power reduction at high temperatures) |
| Standards | CE marking and applicable IEC standards |
Compatibilities
Vehicles with Type 2 socket. Recommended accessories: MID energy meter for dynamic load balancing and solar mode, suitable AC protections (type A RCCB and circuit breaker), and pedestal/support for protected outdoor installation.
The Wallbox Pulsar Max 22kW Cable 7m White combines three-phase power, extra reach, and smart control for fast, safe, and efficient charging in residential and light commercial environments.
