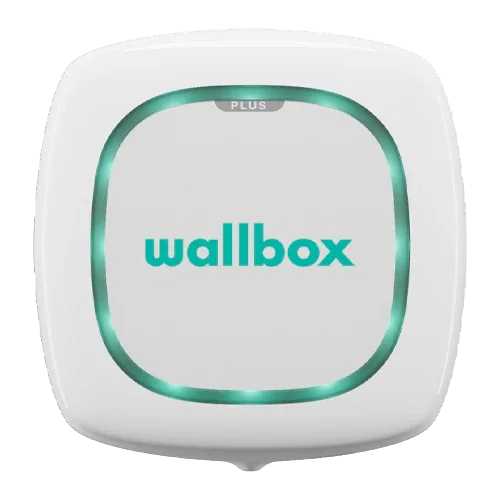

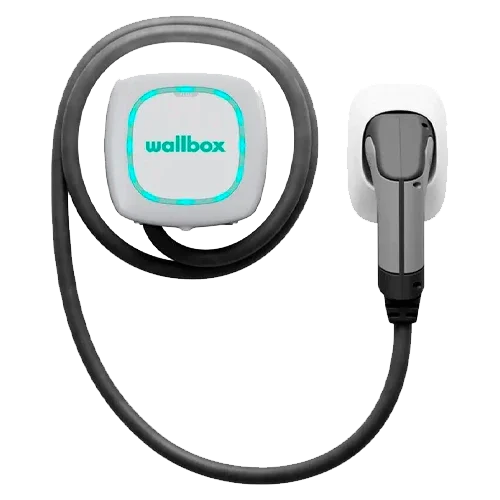

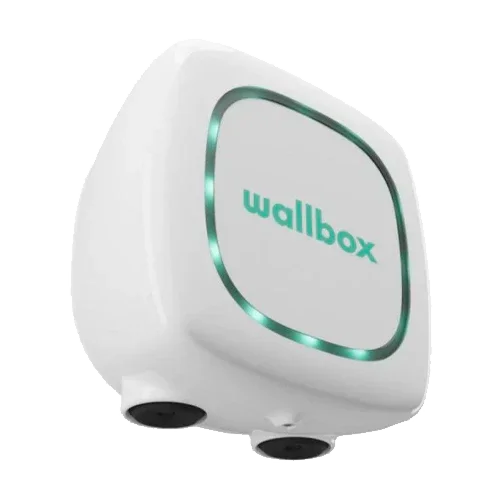

VE Wallbox Pulsar Max Charger 7.4kW 5m Cable White
Modelo: Pulsar Max 7,4kW Cable 5m Blanco- Sku: WALLCAR001
- Vendor: Wallbox
Specifications
Product Description
The Wallbox Pulsar Max 7.4kW Cable 5m White is a high-performance, ultra-compact electric vehicle (EV) charger designed for homes and private parking spaces seeking a reliable, safe, and connected solution. With a fixed 5 m Type 2 cable (Tethered version), IP55/IK10 protection rating, and Wi-Fi/Bluetooth communications, this charging point offers full control via the Wallbox app and portal, as well as advanced energy management functions to optimize your self-consumption.
Main Features
- Single-phase charging power up to 7.4 kW (230 V, 32 A), current adjustable from 6 A to the nominal value.
- Fixed 5 m Type 2 cable, IEC 62196-2 standard, Mode 3 according to IEC 61851-1.
- Wi-Fi and Bluetooth connectivity with Wallbox app and portal; Halo RGB LED status indicator.
- Energy management: integrated static charging, Dynamic Load Management, and Solar Charging with external MID meter.
- Advanced safety: DC residual current detection 6 mA and installation with external RCCB type A; overvoltage category CAT III.
- Robust construction: IP55 / IK10, thermal range from −30 °C to 50 °C, dimensions 198×201×99 mm (without cable).
Advantages or Benefits
- Simple and compact installation: one of the smallest chargers in its class, ideal for garages with limited space.
- Savings and efficiency: adjust the current to avoid tripping the main circuit breaker and make use of solar surplus with photovoltaic charging mode.
- Smart control: schedule charging times, lock the device, check history and costs from the Wallbox app.
- Maximum protection: IK10 chassis, IP55 sealing, and DC leakage monitoring for safe charging.
- Scalable: enable dynamic management with MID meter and expand functionalities through integrations (API/SDK/OCPP partners).
Purpose or Applications
Designed for residential installations and private community parking spaces, the Wallbox Pulsar Max 7.4 kW white with 5 m cable is perfect for daily charging of electric and plug-in hybrid vehicles with Type 2 connector. Its compatibility with Solar Charging makes it the ideal option for homes with photovoltaic systems seeking to maximize self-consumption.
Technical Specifications
| Charging power | 7.4 kW (single-phase) |
| Nominal voltage | 230 V AC ±10 % |
| Nominal current | 32 A (adjustable 6–32 A) |
| Connector / Mode | Type 2 Tethered, Mode 3 (IEC 61851-1 / IEC 62196-2) |
| Cable length | 5 m |
| Frequency | 50/60 Hz |
| Protections | IP55 / IK10, CAT III, DC detection 6 mA (external RCCB type A required) |
| Energy management | Integrated static; Dynamic Load Management and Solar Charging with external MID |
| Communications | Wi-Fi, Bluetooth; Wallbox App and Portal; integrations via API/SDK/OCPP (partners) |
| Indicators | Halo RGB LED and notifications in app |
| Dimensions / Weight | 198×201×99 mm (without cable) / 1.3 kg (unit without cable) |
| Operating temperature | −30 °C to 50 °C (derating above 40 °C) |
| Standards | RED 2014/53/EU, RoHS 2011/65 and applicable IEC standards |
Compatibilities
Vehicles with Type 2 (IEC 62196-2) socket. Recommended accessories: external MID energy meter for Dynamic Load Management and solar charging, suitable AC protections (RCCB type A), and pedestal/wall mount if installed in a covered outdoor area.
The Wallbox Pulsar Max 7.4kW Cable 5m White offers safe, connected, and efficient home charging, optimizing energy use and providing the best balance between power, size, and functionality.
