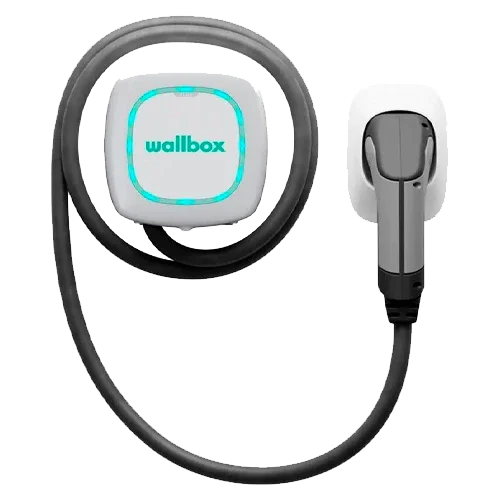

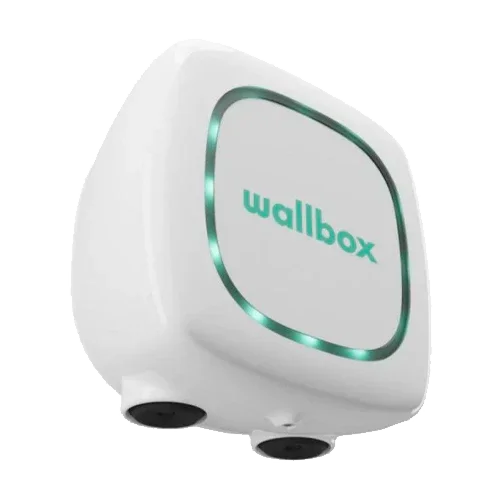

VE Wallbox Pulsar Max Charger 7.4kW 7m Cable White
Modelo: Pulsar Max 7,4kW Cable 7m Blanco- Sku: WALLCAR003
- Vendor: Wallbox
Specifications
Product Description
The Wallbox Pulsar Max 7.4kW 7m Cable White is a high-performance single-phase home charging point with a fixed 7-meter Type 2 cable, designed for those who need greater reach without sacrificing a compact format. With IP55/IK10 protection, Wi-Fi/Bluetooth communications, and control via the Wallbox app and portal, it allows you to schedule charging times, adjust current, and activate efficiency modes such as surplus solar charging.
Main Features
- Charging power: up to 7.4 kW single-phase (230 V, 32 A), adjustable current 6–32 A.
- Fixed 7 m Type 2 cable (IEC 62196-2), Mode 3 according to IEC 61851-1, ideal for spaces with side or front access.
- Connectivity: Wi-Fi and Bluetooth with Wallbox app/portal; RGB LED status ring.
- Energy management: integrated static charging; Dynamic Load Management and Solar Charging with external MID meter.
- Safety: DC residual current detection 6 mA (RDC-DD) and use with type A RCD; CAT III category.
- Robustness: IP55 / IK10, −30 °C to 50 °C, compact housing 198×201×99 mm (unit without cable).
Advantages or Benefits
- Extra reach thanks to the 7 m cable, making it easy to connect vehicles parked in different positions.
- Savings and efficiency with scheduled charging and photovoltaic charging mode to make use of surplus energy.
- Total control from your mobile: locking, users, current limits, and session logging.
- Maximum safety with IK10, IP55, and DC leakage monitoring for reliable home charging.
- Flexible installation and very compact size, ideal for narrow garages or spaces with limited room.
Purpose or Applications
Perfect for homes and private parking spaces requiring a long cable, the Pulsar Max 7.4 kW white with 7 m is the optimal solution for daily charging of EVs and plug-in hybrids with Type 2, especially in installations with solar self-consumption.
Technical Specifications
| Charging power | 7.4 kW (1F) |
| Nominal voltage | 230 V AC ±10 % |
| Nominal current | 32 A (adjustable 6–32 A) |
| Connector / Mode | Type 2 Tethered, Mode 3 (IEC 61851-1 / IEC 62196-2) |
| Cable length | 7 m |
| Frequency | 50/60 Hz |
| Protections | IP55 / IK10, CAT III, DC detection 6 mA (external type A RCCB) |
| Energy management | Integrated static; Dynamic Load Management and Solar Charging with MID |
| Communications | Wi-Fi, Bluetooth; Wallbox App/Portal; API/SDK/OCPP integrations (partners) |
| Indicators | RGB LED halo and notifications in app |
| Dimensions / Weight | 198×201×99 mm (unit without cable) / approx. 1.3 kg |
| Operating temperature | −30 °C to 50 °C (derating above 40 °C) |
| Standards | RED 2014/53/EU, RoHS 2011/65 and applicable IEC standards |
Compatibilities
Vehicles with Type 2 inlet. Recommended accessories: MID meter for dynamic balancing and solar charging, suitable AC protections (type A RCCB), and support/pedestal if installed in a protected outdoor area.
The Wallbox Pulsar Max 7.4kW 7m Cable White combines reach, safety, and intelligent control for efficient home charging ready for self-consumption.
