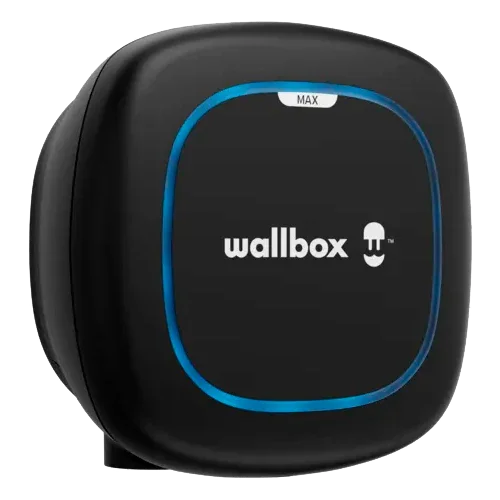

VE Wallbox Pulsar Max Charger 7.4kW 7m Cable Black
Modelo: Pulsar Max 7,4kW Cable 7m Negro- Sku: WALLCAR004
- Vendor: Wallbox
Specifications
Product Description
The Wallbox Pulsar Max 7.4kW 7m Cable Black is an electric vehicle charger with a fixed 7 m Type 2 cable that provides extra convenience in garages and parking spaces where the charging point is not close to the car socket. Compact, robust (IP55/IK10), and fully connected via Wi-Fi/Bluetooth, it is controlled from the Wallbox app/portal to schedule charging times, adjust current, and activate efficiency features such as charging with photovoltaic surplus.
Main Features
- Charges up to 7.4 kW (230 V, 32 A) single-phase; adjustable current between 6 and 32 A.
- 7 m Tethered Type 2 cable, IEC 62196-2 standard, Mode 3 compliant with IEC 61851-1.
- Wi-Fi and Bluetooth connectivity; RGB LED halo status indicator and full management from the app.
- Advanced energy management: static control, Dynamic Load Management, and Solar Charging with MID meter.
- Enhanced safety: DC leakage detection 6 mA (RDC-DD) and use with type A RCD; CAT III.
- Compact and resistant housing: IP55 / IK10, operation −30 °C…50 °C; 198×201×99 mm (unit without cable).
Advantages or Benefits
- Greater reach to connect the vehicle conveniently, even with front or rear trunk.
- Optimize your bill with scheduled charging, current limit, and use of solar surplus.
- Safety and reliability with IK10 mechanical protection, IP55 sealing, and DC monitoring.
- Compact design that fits in small garages and enables discreet installations.
- Scalable with dynamic load balancing via MID meter and third-party integrations.
Purpose or Applications
Designed for residential and private parking spaces, the Pulsar Max 7.4 kW black 7 m is ideal for daily charging of EVs and plug-in hybrids with Type 2 connector, especially in homes with photovoltaics where self-consumption is prioritized.
Technical Specifications
| Charging power | 7.4 kW (1F) |
| Nominal voltage | 230 V AC ±10 % |
| Nominal current | 32 A (adjustable 6–32 A) |
| Connector / Mode | Type 2 Tethered, Mode 3 (IEC 61851-1 / IEC 62196-2) |
| Cable length | 7 m |
| Frequency | 50/60 Hz |
| Protections | IP55 / IK10, CAT III, DC detection 6 mA (external type A RCCB) |
| Energy management | Integrated static; Dynamic Load Management and Solar Charging with MID |
| Communications | Wi-Fi, Bluetooth; Wallbox App/Portal; API/SDK/OCPP integrations (partners) |
| Indicators | RGB LED halo and app notifications |
| Dimensions / Weight | 198×201×99 mm (unit without cable) / approx. 1.3 kg |
| Operating temperature | −30 °C to 50 °C (with derating at high Tº) |
| Standards | RED 2014/53/EU, RoHS 2011/65 and applicable IEC standards |
Compatibilities
For vehicles with Type 2 socket. Recommended: MID meter for dynamic balancing and solar charging, AC protections (type A RCCB), and support/pedestal when installed outdoors under cover.
The Wallbox Pulsar Max 7.4kW 7m Cable Black combines reach, safety, and connectivity for more convenient, efficient home charging, ready for photovoltaic self-consumption.
