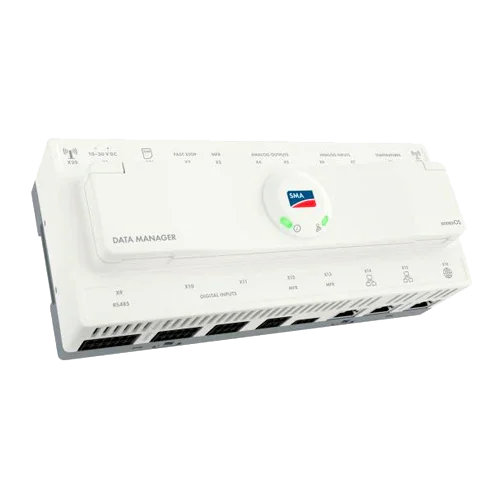

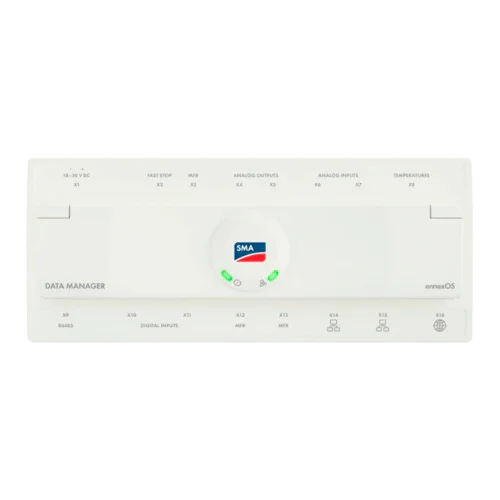

SMA Data Manager M Monitoring Controller EDMM-20

Product description

The SMA Data Manager M EDMM-20 is a professional controller designed for advanced monitoring and energy management in photovoltaic solar installations. Capable of managing up to 50 devices, this unit centralizes communication, active and reactive power regulation, and the integration of batteries and electric vehicle chargers, all through the Sunny Portal platform powered by ennexOS.

Main features

• Support for up to 50 devices or 7.5 MVA in monitoring mode
• Active/reactive regulation with Q(U), Q(P), P(f), P(V) functions
• Interface with 3 RJ45 LAN ports, 2 RS485, and integrated Wi-Fi
• Analog and digital inputs/outputs, including PT100
• Efficient consumption: only 8 W and power supply between 10–30 V DC
• DIN rail or wall mounting, IP20 enclosure

Advantages or benefits

• Full control of your installation from anywhere thanks to Sunny Portal
• Enables compliance with regulatory requirements and export control to the grid
• Facilitates self-consumption management, peak shaving, and time-of-use tariffs
• Compatible with industrial sensors and SCADA systems
• Integrated security: authentication, alarms, and automatic updates

Purpose or applications

Ideal for commercial and industrial solar installations that require precise monitoring, energy control, integration with batteries, EV chargers, or compliance with grid regulations. It is also suitable for hybrid and off-grid environments with Sunny Island inverters.

Technical specifications

Compatibilities

This product is compatible with: SMA IO Module ioLogik E1242, SMA IO Module ioLogik E1260.

SMA Data Manager M EDMM-20 is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
