Shurflo Filter 255-213 1/2" NPS-M Pump Protection 50 µm

Product description

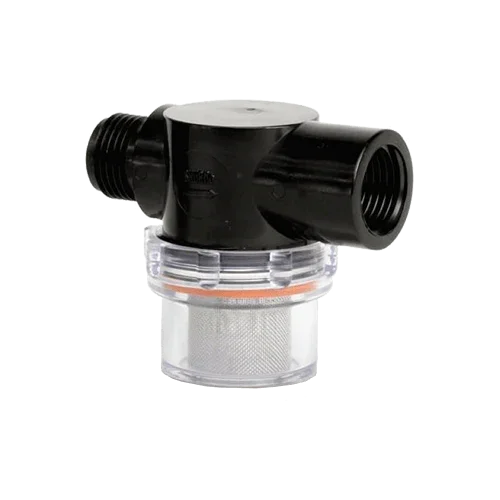

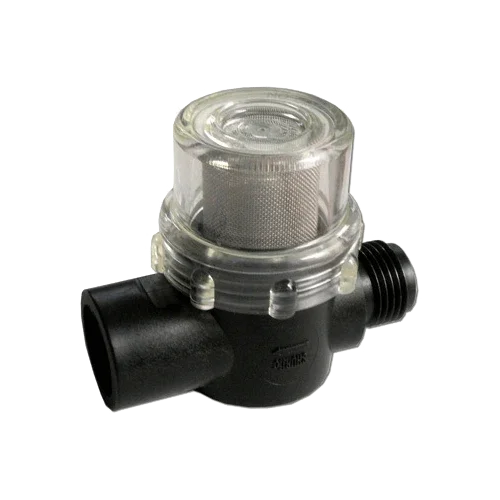

The Shurflo 255-213 1/2" NPS-M Pump Protection Filter 50 µm is an inlet filter (strainer) designed for installation on the suction line of diaphragm pumps such as the SHURflo 2088, 8000 series, and the submersible 9300. Its function is to prevent particles larger than 50 microns from entering the pump, reducing the risk of clogging and extending its service life. Manufactured with a polypropylene body and T-304 stainless steel mesh, it is transparent for quick visual inspection and is certified for use with drinking water (NSF 61).

Main features

• ½" NPS-M (male) thread on inlet and outlet
• 50-micron T-304 stainless steel mesh
• Polypropylene body with transparent nylon bowl
• NSF 61 certification for drinking water
• Easy disassembly without tools for cleaning
• Designed to operate on the vacuum side of the pump

Advantages or benefits

• Prevents the entry of debris and sediments into the pump
• Extends service life and reduces maintenance of solar pumps
• Suitable for solar, marine, caravan, and portable systems
• Quick installation with standard ½" NPS-M threads
• Allows visual inspection of dirt level in the filter

Purpose or applications

The Shurflo 255-213 is designed to protect water pumps in off-grid solar applications, boats, recreational vehicles, and potable water systems. It is installed on the suction line of the pump, preventing the entry of particles and extending the system's operating life. Ideal for systems with Shurflo 2088, 8000, and 9300 pumps powered by solar panels or battery.

Technical specifications

Compatibilities

This product is compatible with: Shurflo 2088-403-143, 2088-443-144, 2088-313-145, 2088-514-145, 8000-243-155, 8000-441-138, 5050-2301-C011, 2088-474-144, 2088-573-534, 5050-2301-G011, 2088-592-144, and Shurflo 9300 solar pump.

Shurflo 255-213 1/2" NPS-M 50 µm Pump Protection Filter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
