1 MPPT Solar 600V 20A Protection Kit Aurensol

Product Description

The Kit Protections 1 MPPT Solar 600V 20A Aurensol brings together in a single set all the necessary elements to reliably protect the direct current line of a photovoltaic string connected to a single MPPT. Designed for installers seeking speed, organization, and technical compliance, it integrates a watertight IP65 enclosure with 12 modules, a DC 600 V surge arrester (2 poles), and a 2P 20 A 800 VDC curve C photovoltaic circuit breaker. The coordination of protections reduces the risk of damage from transients and faults, ensuring the availability and service life of the inverter and panels.

Main Features

• Polycarbonate enclosure IP65, 12 modules (1 row), suitable for indoor or protected outdoor use.
• DC surge arrester 600 V 2P Type 2 (replaceable cartridge), specific for PV strings.
• Photovoltaic circuit breaker 2P 20 A 800 VDC curve C, suitable breaking capacity in DC.
• Clear architecture: labelable input/output, reserved space for future expansions.
• Ready-to-install design: organized wiring, accessible terminals, and conductor guidance.

Advantages or Benefits

• Less engineering and procurement time: protection selection already resolved.
• Coordinated DC protection: minimizes failures in modules, connectors, and MPPT due to surges or shorts.
• Greater system availability: reduces downtime and maintenance costs.
• Professional and aesthetic installation: compact, watertight, and easily accessible panel.
• Scalability: DIN rail space to add isolator, fuses, or monitoring.

Purpose or Applications

Recommended for use as a direct current protection panel for a string of panels (1 MPPT) in residential self-consumption systems, shelters, small industrial rooftops, or solar pumping. Suitable for inverters with an MPPT window up to 600 Vdc, provided the string current does not exceed 20 A.

Technical Specifications

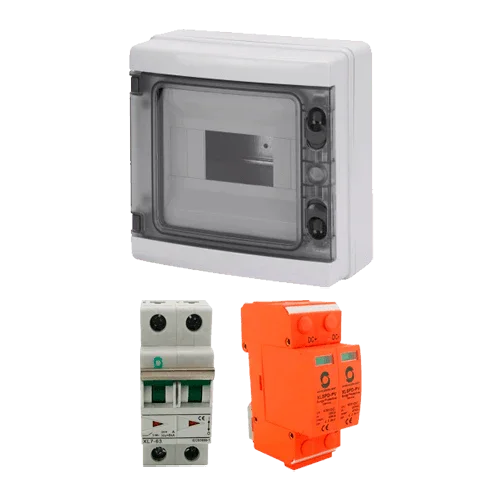

Kit Composition

• 1 × IP65 Watertight Panel HT-12WAYS 12 Modules 1 Row
• 1 × DC Surge Arrester XLSPD-PV 600V 2P
• 1 × Circuit Breaker XL7-63 PV 2P 20A 800VDC Curve C

Compatibilities

Valid as DC protection prior to the MPPT of residential and light commercial inverters (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.) provided the electrical parameters are compatible (600 Vdc and ≤20 A per string). Recommended accessories: IP66/68 cable glands, MC4 connectors, DC isolator, gPV fuses, and safety labeling.

With the Kit Protections 1 MPPT Solar 600V 20A Aurensol you get a compact, safe DC solution ready to extend the service life of your photovoltaic installation.
