1 MPPT Solar 600V 32A Protection Kit Aurensol

Product description

The Kit Protecciones 1 MPPT Solar 600V 32A Aurensol offers a complete set to protect the direct current line of a PV string connected to a single MPPT with currents up to 32 A. It includes a 12-module IP65 watertight enclosure, a surge arrester specifically for photovoltaics at 600 V DC, and a photovoltaic circuit breaker 2P 32 A 800 VDC curve C. This combination creates a coordinated protection chain that safeguards the PV generator and inverter against transients, overloads, and short circuits, reducing downtime and extending the system's service life.

Main features

• IP65 watertight box with 12 modules (1 row), robust and suitable for protected indoor or outdoor use.
• DC surge arrester 600 V 2P Type 2: effective defense against transient spikes.
• Photovoltaic circuit breaker 2P 32 A 800 VDC curve C with suitable DC breaking capacity.
• Orderly DIN rail architecture, with provision for switch disconnector or metering if required.
• Ready-to-install solution that reduces engineering, procurement, and assembly time.

Advantages or benefits

• DC protection sized for high-current modules and strings (≤32 A per branch).
• Superior service continuity thanks to SPD + circuit breaker coordination.
• Clean and maintainable installation, with convenient access to terminals and clear labeling.
• Scalable: free space to integrate gPV fuses, SPD monitoring, or load-break switch.
• Technical compliance and professional presentation in a single compact unit.

Purpose or applications

Recommended as a DC protection box for a single string in residential and light commercial self-consumption systems with field voltages up to 600 Vdc and string currents up to 32 A. Suitable for modern inverters with one MPPT per input and high-current modules (half-cut, TOPCon).

Technical specifications

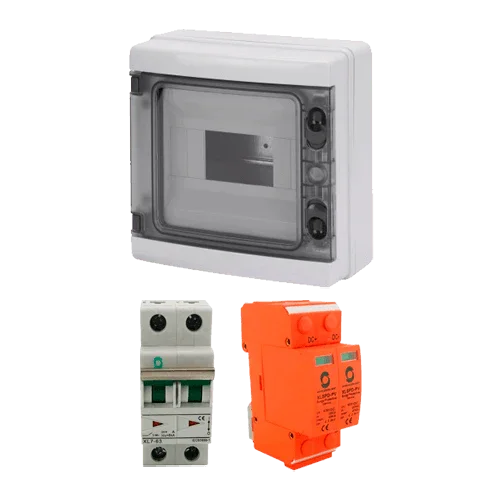

Kit composition

• 1 × IP65 HT-12WAYS 12 Modules 1 Row Enclosure
• 1 × DC XLSPD-PV 600V 2P Surge Protector
• 1 × XL7-63 PV 2P 32A 800VDC Curve C Circuit Breaker

Compatibilities

Suitable as DC protection before the MPPT in residential and light commercial inverters (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.), provided the input meets 600 Vdc and ≤32 A. Recommended accessories: MC4 connectors, IP66/68 cable glands, DC isolator, gPV fuses, and safety signage/labeling.

With the Kit Protections 1 MPPT Solar 600V 32A Aurensol you obtain safety, reliability, and professional integration for higher current photovoltaic strings.
