1 MPPT Solar 600V 50A Protection Kit Aurensol

Product Description

The Kit Protections 1 MPPT Solar 600V 50A Aurensol brings together in a single set everything necessary to protect, with a high current margin, the direct current line of a photovoltaic string connected to a single MPPT. It includes a 12-module IP65 waterproof enclosure, a surge arrester specifically for photovoltaics rated at 600 V DC (2 poles, Type 2), and a 2P 50 A 800 VDC curve C photovoltaic circuit breaker. The coordination between the SPD and the circuit breaker allows mitigation of the effects of transients, overloads, and short circuits, preserving panels, connectors, and inverter electronics in demanding residential and commercial installations.

Main Features

• IP65 enclosure with 12 modules (1 row), resistant to dust and water jets.
• DC surge arrester 600 V 2P Type 2, replaceable cartridge, suitable for PV strings.
• Photovoltaic circuit breaker 2P 50 A 800 VDC curve C with suitable DC breaking capacity.
• Clear DIN rail architecture, provision for isolator, gPV fuses, or metering.
• Preconfigured set that reduces engineering, procurement, and commissioning times.

Advantages or Benefits

• Sized for high-current strings (≤50 A): safety and service continuity.
• Coordinated protection that reduces failures due to surges, arcs, or shorts and extends the life of the MPPT.
• Clean and maintainable installation, with space and accessibility for future expansions.
• Wide compatibility with TOPCon/bifacial modules and modern MPPTs up to 600 VDC.
• Professional presentation and technical compliance in a compact kit.

Purpose or Applications

Used as a direct current protection box for a single string (1 MPPT) in advanced residential self-consumption systems, small warehouses, commercial rooftops, or solar pumping, when the branch current reaches up to 50 A and the field voltage does not exceed 600 VDC.

Technical Specifications

Kit Composition

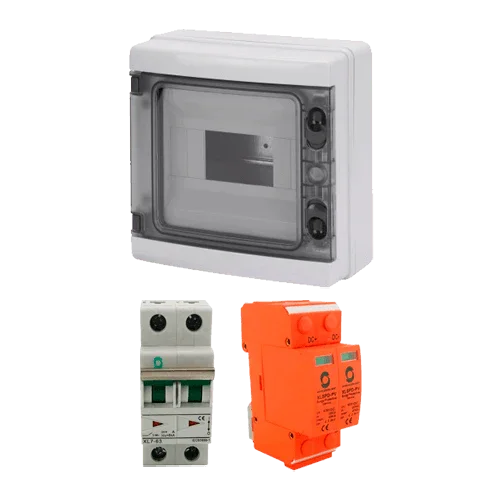

• 1 × IP65 Waterproof Enclosure HT-12WAYS 12 Modules 1 Row
• 1 × DC Surge Arrester XLSPD-PV 600V 2P
• 1 × Circuit Breaker XL7-63 PV 2P 50A 800VDC Curve C

Compatibilities

Applicable as DC protection before the MPPT in light residential and commercial inverters from common brands (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.), verifying ≤600 VDC and ≤50 A per input. Suggested accessories: MC4 connectors, IP66/68 cable glands, DC load-break isolator, gPV fuses, and safety labeling.

The Kit Protections 1 MPPT Solar 600V 50A Aurensol offers robust, scalable, and easy-to-install DC protection for high-intensity photovoltaic strings.
