1 MPPT Solar 600V 63A Protection Kit Aurensol

Product Description

The Kit Protections 1 MPPT Solar 600V 63A Aurensol is designed to protect photovoltaic strings with very high current connected to a single MPPT. It integrates a watertight IP65 enclosure with 12 modules, a DC 600 V Type 2 surge arrester (2 poles), and a 2P 63 A 800 VDC curve C photovoltaic circuit breaker, ensuring adequate breaking capacity in direct current and effective defense against voltage transients. The selection of components and their arrangement on a DIN rail allow for quick, orderly installation with room for future expansion.

Main Features

• Polycarbonate enclosure IP65, 12 modules (1 row), for indoor or protected outdoor use.
• SPD DC 600 V 2P Type 2 with replaceable cartridge, optimized for PV fields.
• Photovoltaic circuit breaker 2P 63 A 800 VDC curve C, reliable DC breaking for high currents.
• Clear layout with reserved modules for isolator, gPV fuses, or monitoring.
• Preconfigured assembly that reduces engineering, purchasing, and installation time.

Advantages or Benefits

• DC protection sized for strings of ≤63 A: maximum safety and service continuity.
• Minimizes damage from surges and short circuits, protecting modules, connectors, and inverter electronics.
• Maintainable installation: easy access to terminals and orderly labeling for verification.
• Wide compatibility with high-current modules (TOPCon/bifacial) and MPPT up to 600 VDC.
• Professional presentation and technical compliance in a compact format.

Purpose or Applications

Ideal as a DC protection box for a single string in advanced self-consumption installations, small rooftop plants, or solar pumping, when the branch current can reach up to 63 A and the field voltage is below 600 VDC.

Technical Specifications

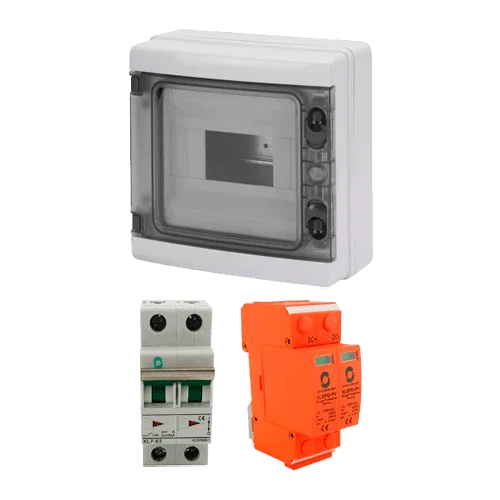

Kit Composition

• 1 × Watertight Enclosure IP65 HT-12WAYS 12 Modules 1 Row
• 1 × DC Surge Arrester XLSPD-PV 600V 2P
• 1 × Circuit Breaker XL7-63 PV 2P 63A 800VDC Curve C

Compatibilities

Valid as DC protection before the MPPT in inverters from common brands (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.), always within 600 VDC and ≤63 A per input. Recommended accessories: MC4 connectors, IP66/68 cable glands, DC load isolator, gPV fuses, and signaling/labeling in accordance with regulations.

The Kit Protections 1 MPPT Solar 600V 63A Aurensol guarantees powerful, safe DC protection, ready for very high current strings in demanding self-consumption projects.
