2 MPPT Solar Protections Kit 600V 20A Aurensol

Product Description

The Kit Protections 2 MPPT Solar 600V 20A Aurensol is a professional set that integrates all the necessary direct current protections for two independent photovoltaic strings feeding two MPPT inputs. It brings together, in a sealed IP65 enclosure with 12 modules, two surge arresters specific for PV and two photovoltaic circuit breakers 800 VDC, all sized for field voltages up to 600 V and branch currents of ≤20 A. With this kit, you reduce selection, assembly, and verification times, while ensuring service continuity and the inverter's lifespan.

Main Features

• Compact IP65 enclosure (12 modules, 1 row) suitable for indoor or protected outdoor use.
• Double SPD DC Type 2, 2 poles, 600 V, one for each string/MPPT for protection against transients.
• Two PV circuit breakers 2P 20 A 800 VDC curve C with DC breaking capacity.
• Clear DIN rail architecture with space reserved for disconnectors, gPV fuses, or monitoring.
• Set ready to install, orderly wiring, and simple labeling.

Advantages or Benefits

• Coordinated string protection: limits fault propagation and facilitates diagnosis.
• Fewer shutdowns and MPPT failures in the event of voltage spikes or short circuits in the PV branch.
• Quick and maintainable installation, with easy access to terminals and space for expansions.
• Wide compatibility with high-current modules and modern MPPTs up to 600 Vdc.
• Professional presentation and technical compliance in a compact format.

Purpose or Applications

Recommended for residential and light commercial self-consumption systems with two independent strings (2 × MPPT) and branch current ≤20 A. Ideal for residential rooftops, solar pergolas, small warehouses, or solar pumping with two orientations.

Technical Specifications

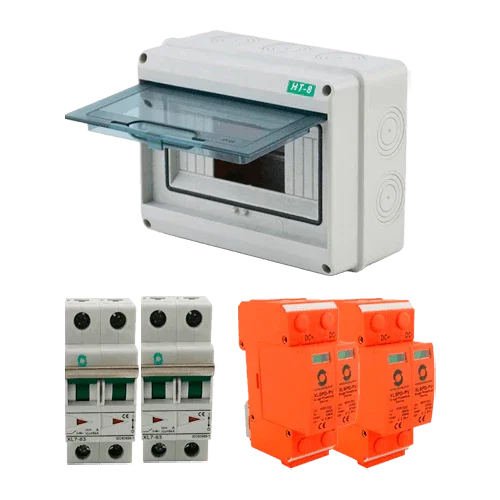

Kit Composition

• 1 × Sealed Enclosure IP65 HT-12WAYS 12 Modules 1 Row
• 2 × DC Surge Arrester XLSPD-PV 600V 2P
• 2 × Circuit Breaker XL7-63 PV 2P 20A 800VDC Curve C

Compatibilities

Valid as a DC protection board prior to two MPPT inputs in residential and light commercial inverters (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.), respecting limits of 600 Vdc and ≤20 A per input. Usual accessories: MC4 connectors, IP66/68 cable glands, DC load disconnectors, gPV fuses, and safety labeling.

The Kit Protections 2 MPPT Solar 600V 20A Aurensol simplifies assembly, increases safety, and ensures reliable and long-lasting operation of your PV installation.
