Three-phase AC Protection Kit 5 kW Aurensol

Product description

The 5 kW Three-Phase AC Protection Kit Aurensol is designed to safeguard the AC output of three-phase inverters up to 5 kW. It integrates an IP65 watertight enclosure, surge protection, residual current protection, and coordinated circuit breaker, reducing electrical risks and downtime in PV self-consumption installations.

Main features

• 18-module IP65 enclosure ensuring watertightness and space for expansions.
• Type 2 AC SPD (4P, 385 V) to protect against network surges and transients.
• 4P 40 A 30 mA Type A residual current device for indirect contact protection.
• 4P 10 A 400 V curve C circuit breaker, selectivity and fast tripping in case of faults.
• Clear and maintainable architecture, designed for professional installers.

Advantages or benefits

• Complete pack: minimizes selection errors and simplifies procurement.
• Comprehensive protection: people, equipment, and installation against overloads and surges.
• Versatile installation: suitable for residential and light commercial applications.
• Ready to expand: modules available for metering, auxiliary contact, or signaling.
• Technical compliance: components suitable for 400/230 V three-phase networks.

Purpose or applications

Designed to protect the AC stage of 5 kW three-phase inverters in self-consumption systems for homes with three-phase supply, commercial premises, small warehouses, or workshops. It can be installed near the inverter or as a line panel before the main switch/meter, according to project requirements.

Technical specifications

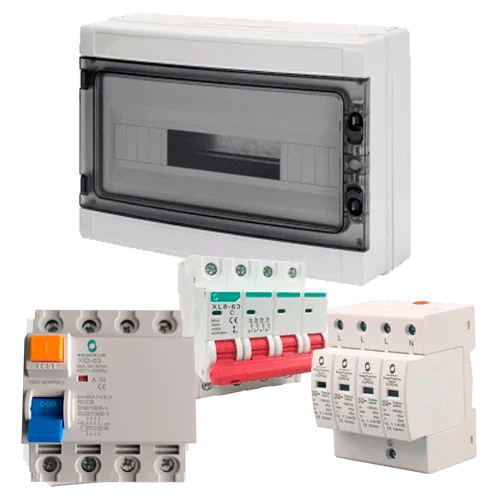

Kit composition

• 1 × IP65 HT-18WAYS Watertight Enclosure 18 Modules 1 Row
• 1 × XLSPD-40 4P 385 V AC Type 2 Surge Protector
• 1 × XID-63 4P 40 A 30 mA Type A Residual Current Device
• 1 × XL8-63 4P 10 A 400 V AC Curve C Circuit Breaker

Compatibilities

Panel recommended for three-phase inverters up to 5 kW from leading manufacturers (Huawei, Sungrow, Solis, GoodWe, Fronius, SMA, SolaX, Salicru, etc.). Compatible with standard installation accessories: cable glands for IP65, comb busbars, labeling, and three-phase energy meters that can be integrated using the available modules.

With the Aurensol 5 kW Three-Phase AC Protection Kit you will have professional, safe AC protection, ready to grow with your self-consumption system.
