Red Solar Kit 20kW Huawei SUN2000L-20KTL-M5 Three-phase
Modelo: Kit Trifasico Huawei 20 kW- Sku: HUAWKIT011
- Vendor: Huawei
Specifications
Product Description
The Huawei SUN2000L-20KTL-M5 20kW Three-phase Grid-tied Solar Kit is a professional solution for large homes and SMEs seeking maximum savings and reliability. It provides 20.06 kWp with 34 Trina Vertex S+ 590 W modules and a Huawei M5 20 kW inverter with 98.4% efficiency, IP66 protection, 2 MPPT with 4 inputs, and intelligent monitoring via the FusionSolar app.
Main Features
- Total PV power: 20.06 kWp (34×590 W) with N-type bifacial double-glass modules for higher annual energy yield.
- Huawei SUN2000-20KTL-M5 inverter: 20 kW three-phase, 98.4% max efficiency, IP66, 2 MPPT/4 inputs.
- Wide operating range: MPPT 200–1000 V with 200 V startup to maximize solar hours.
- Inputs prepared for high-current modules, keeping voltages and currents within specifications.
- Advanced safety: AFCI, insulation monitoring, and Type II SPD on DC and AC sides.
- Professional connectivity: RS485 and Smart Dongle (WLAN/Ethernet/optional 4G) with full control in FusionSolar.
Estimated Production
Indicative estimates with PR=0.80 and average HSP.
| Photovoltaic power (STC) | 20.06 kWp |
| Spain — Winter / Summer | 20.06×2.5×0.80 ≈ 40.1 kWh/day / 20.06×6.5×0.80 ≈ 104.3 kWh/day |
| Portugal — Winter / Summer | 20.06×2.7×0.80 ≈ 43.3 kWh/day / 20.06×6.7×0.80 ≈ 107.6 kWh/day |
| Typical application | Large homes, businesses, and SMEs with high daytime consumption and plans to integrate HV storage. |

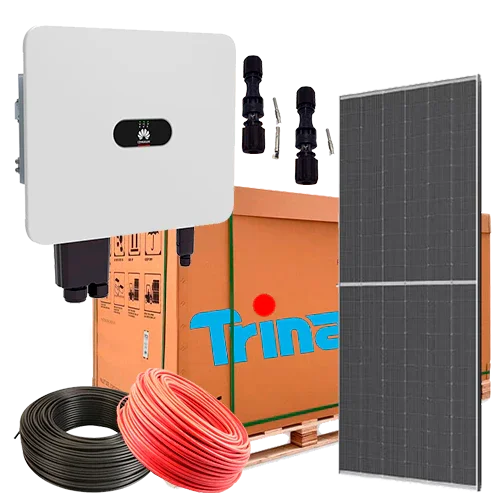

Kit Composition
- 34× Trina 590 W NEG18C.20 Vertex S+ Bifacial Solar Panel
- 2× Pair of MC4 WSPVCC-1500 Connectors (up to 1500 VDC)
- 1× PV1-F Black Solar Cable 1×6 mm² 50 m 1500 VDC
- 1× PV1-F Red Solar Cable 1×6 mm² 50 m 1500 VDC

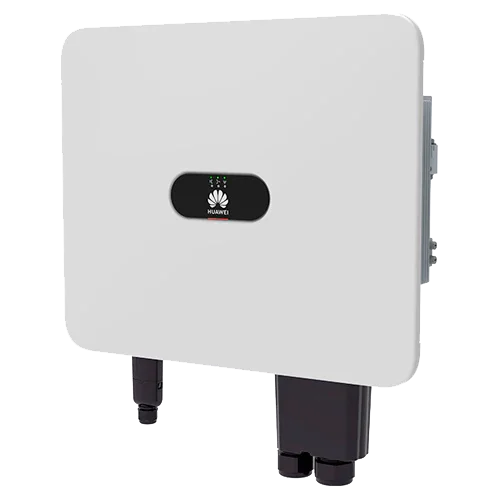

- 1× Huawei 20 kW Three-phase Inverter SUN2000L-20KTL-M5
Advantages or Benefits
- Outstanding energy savings with 20 kW AC and over 20 kWp PV.
- Bifacial double-glass modules: higher actual production and superior durability.
- Stable three-phase architecture for balanced loads and electrical comfort in businesses and large homes.
- Scalable and ready for Huawei LUNA HV battery with backup function (Backup Box-B1).
- Total control from your mobile: production, consumption, and real-time alerts to optimize ROI.
Purpose or Applications
Three-phase self-consumption in high-consumption homes, offices, restaurants, and SMEs with efficient climate control, cold storage, and IT equipment, seeking reliability and growth capacity with storage.
Technical Specifications
| Inverter | Huawei SUN2000-20KTL-M5, 20 kW (3×230/400 V), 98.4% max, IP66 |
| MPPT / Inputs | 2 MPPT / 4 total inputs |
| MPPT Range / Startup | 200–1000 V / 200 V |
| Current per MPPT / Max Isc | 30 A (two strings) / 40 A |
| Recommended PV power | Up to 30 kWp |
| Protections | AFCI, Type II SPD DC/AC, anti-islanding, reverse polarity |
| Communications | RS485; Smart Dongle WLAN/Ethernet/optional 4G; FusionSolar app |
| Kit panel | Trina Vertex S+ 590 W bifacial, N-type, double glass; IP68 junction box |
Compatibilities
Recommended expansions: HV Huawei LUNA2000 batteries (5–21 kWh), Backup Box-B1 for backup and field expansion with more Trina 590 W NEG18C.20 panels, respecting string design and inverter specifications.
The Huawei SUN2000L-20KTL-M5 20kW Three-phase Grid-tied Solar Kit offers power, safety, and control for high-performance self-consumption with Huawei technology and premium bifacial panels.
