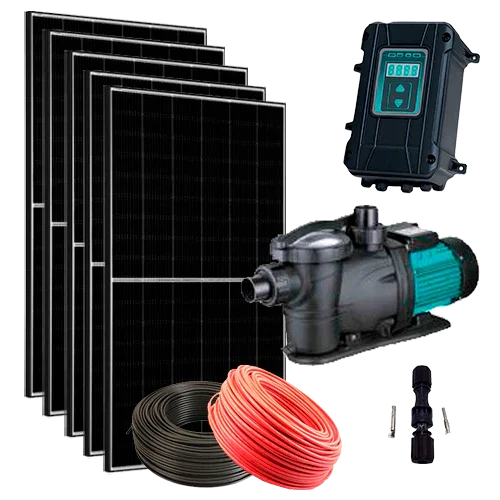

ZIRI Pool Solar Kit 180m³ Hybrid XKP27-19-150-1200-AD 1200W 27m³/h 19m

Product description

The ZIRI 180m³ Hybrid Pool Solar Kit XKP27-19-150-1200-AD 1200W 27m³/h combines a professional hybrid filtration system with a bifacial photovoltaic generator to keep large-volume pools completely clean, always prioritizing solar energy. The ZIRI XKP27-19-150-1200-AD pump integrates MPPT, soft start, and intelligent switching between direct current (PV) and alternating current (grid or generator), so you can filter during sunlight hours and, if needed, continue operating with AC backup. With 1200 W of power, it provides 27 m³/h flow rate and 19 m head, sufficient for fast and silent filtration cycles in pools up to 180 m³.

Main features

• Hydraulic performance: 27 m³/h flow rate and 19 m head for large pools.
• DC/AC hybrid: operates on DC 90–430 V (string with Voc < 430 V) or AC 80–280 V.
• Integrated electronics: MPPT, soft start, automatic frequency conversion, and LED display.
• 5 × bifacial panels JA Solar 455 W (108 half-cells, up to 1500 V DC) for greater production and durability.
• Protection IP55, thermal range -15 °C…+60 °C, and 2” hydraulic connections.
• Clean and low-maintenance installation, with materials resistant to UV and pool chemicals.

Advantages or benefits

• Energy savings by prioritizing photovoltaic use, with guaranteed service through AC backup.
• Stable filtration under clouds or irradiance variations thanks to MPPT tracking.
• Longer hydraulic lifespan due to progressive start-up and intelligent power management.
• Silent and safe operation, suitable for continuous use during the season.
• Standard and accessible components that simplify maintenance and future expansions.

Purpose or applications

Primary filtration in large residential pools, small communities, boutique hotels or spas; recirculation in tanks with sand or cartridge filters; installations where priority solar operation with automatic AC backup is required.

Technical specifications

Sizing and operation

The PV generator in the kit provides at least the power required for the pump's start-up and operation. Connect the modules so that the string's operating point (Vmp) remains within 90–430 Vdc and ensure Voc < 430 V under low temperature conditions. In hybrid mode, you can switch to AC 80–280 V when there is no sun. Includes DC/AC disconnection, check polarity, and commission following safety standards.

Compatibilities

Recommended accessories (not included): structures for 5 panels (coplanar or ground), DC 1500 V protections (circuit breaker and SPD), AC disconnection and protections, check valve, pressure gauge and PVC pressure fittings, as well as timer or flow switch for automation.

Kit composition

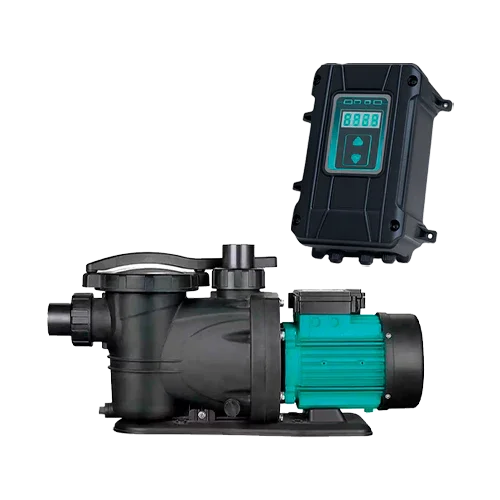

• 1 × ZIRI Hybrid Solar Filter XKP27-19-150-1200-AD 1200 W 19 m 27 m³/h

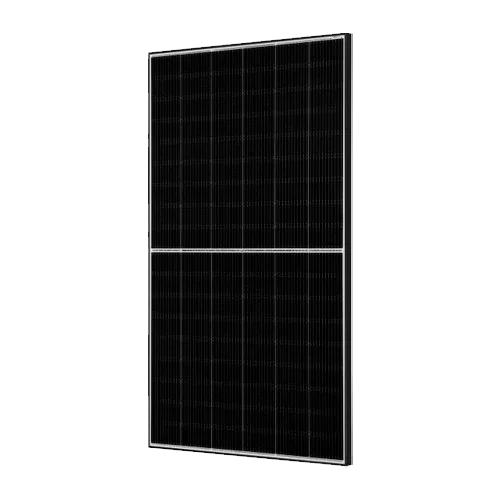

• 5 × JA Solar 455 W Bifacial Solar Panel JAM54D40 LB

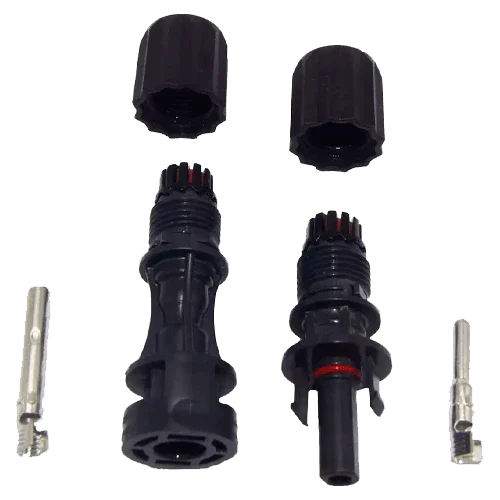

• 1 × Pair of MC4 Connectors WSPVCC-1500

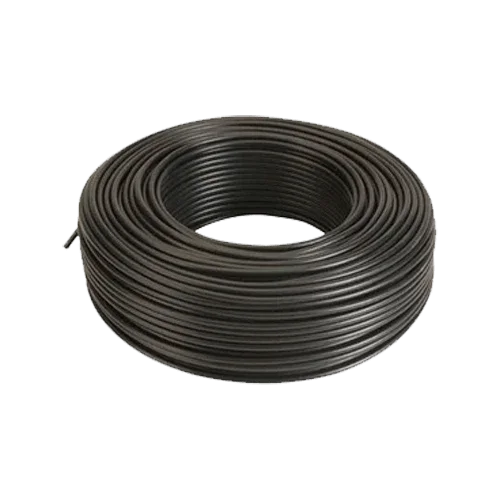

• 1 × PV1-F Solar Cable Black 1×6 mm² 25 m 1500 V DC

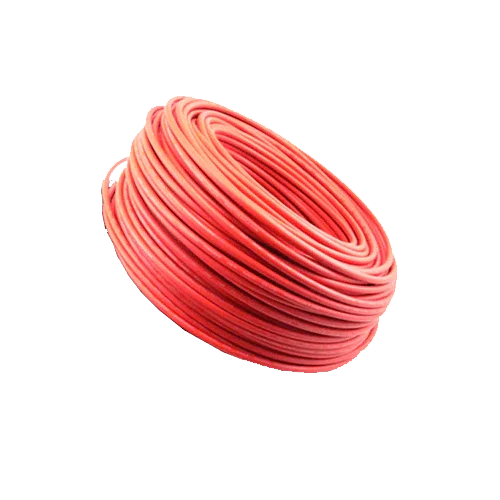

• 1 × PV1-F Solar Cable Red 1×6 mm² 25 m 1500 V DC

The ZIRI 180m³ Hybrid Pool Solar Kit XKP27-19-150-1200-AD 1200W 27m³/h is the professional solution for filtering large pools with solar priority and automatic backup, ensuring efficiency, silence, and reliability season after season.
