ZIRI Pool Solar Kit 210m³ FCP1500S 2200W 36.4m³/h 27m
Modelo: FCP1500S- Sku: ZIRIKIT022
- Vendor: ZIRI Solar
Specifications
Product Description
The ZIRI 210m³ FCP1500S 2200W 36.4m³/h Solar Pool Kit is designed for the filtration of large-volume pools in homes, communities, and hotels without relying on the electrical grid. The ZIRI FCP1500S filter operates on direct current with an internal MPPT, delivering a flow rate of 36.4 m³/h and a head of 27 m, enabling fast, stable, and quiet filtration cycles. The system is completed with six JA Solar bifacial modules of 455 W, PV1-F cabling, and MC4 connectors rated at 1500 V DC for a professional, safe, and durable installation.
Main Features
- ZIRI FCP1500S 2200 W: high flow rate (36.4 m³/h) and 27 m head for pools up to 210 m³.
- Integrated MPPT in the pump: optimal point tracking, soft start, and stable operation under cloudy conditions.
- Wide electrical window: 60–440 VDC to operate within the FCP1500S voltage range.
- 6 × JA Solar 455 W bifacial panels, 108 half-cells, suitable up to 1500 V DC, high durability glass-glass.
- XL pre-filter and 2 ½” hydraulic connections to minimize losses and protect the main filter.
- PV1-F 6 mm² solar cable and original MC4 connectors for a secure, low-loss connection.
Advantages or Benefits
- Immediate energy savings: solar energy covers daily recirculation cycles.
- Simplified installation: MPPT electronics inside the pump, fewer external devices, and quick commissioning.
- Superior water quality due to the high sustained flow and large-capacity pre-filter.
- Professional components resistant to UV and pool chemicals → longer service life and less maintenance.
- Quiet and reliable operation even with irradiance variations.
Purpose or Applications
Main filtration of large residential pools, boutique hotels, and small communities; recirculation in tanks with sand or cartridge filters; solar filtration where very high flow and useful pressure are required without grid consumption.
Technical Specifications
| Pump | ZIRI FCP1500S, 2200 W, 36.4 m³/h, 27 m, internal MPPT, XL pre-filter, 2 ½” connections |
| Pump electrical range | 60–440 VDC (DC operation with MPPT; keep the operating voltage within this window) |
| Solar panels | 6 × JA Solar 455 W bifacial (108 half-cells, glass-glass, up to 1500 V DC) |
| Cabling | PV1-F 1×6 mm²: 25 m black + 25 m red, 1500 V DC |
| Connectors | Pair MC4 WSPVCC-1500 (up to 1500 V DC) |
| Recommended volume | Up to 210 m³ |
| Fluid | Clean treated water (pool) |
| Pump materials | Body/diffuser in PP reinforced with fiberglass; transparent cover; impeller in alloy |
Sizing and Operation
The included PV array provides at least the power required for the start-up and operation of the FCP1500S. Connect the modules so that the operating point (Vmp) remains within 60–440 VDC of the pump’s MPPT and respect the open-circuit voltage limit of the string under cold conditions. Includes DC isolation and check polarity before commissioning.
Compatibilities
Recommended accessories and complements (not included): structures for 6 panels (coplanar or ground), IP65 waterproof box with cable glands, 1500 V DC protections (circuit breaker and SPD), check valve, pressure gauge, PVC pressure unions and fittings, and flow timer/switch.

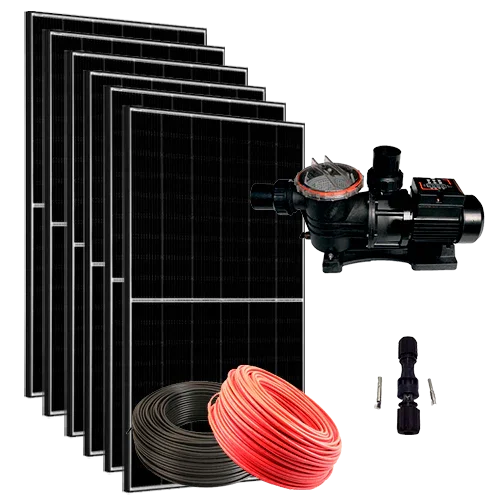

Kit Composition

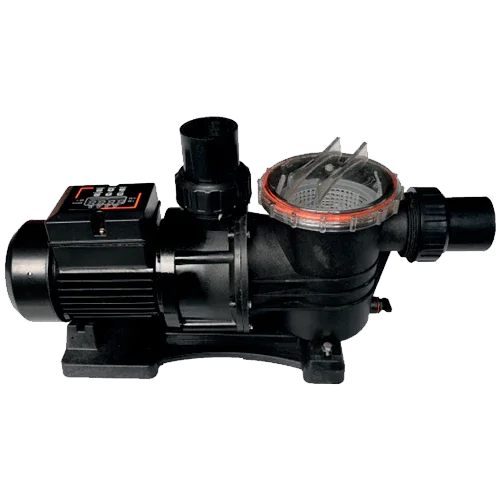

- 1 × ZIRI FCP1500S 2200W 27m 36.4m³/h Solar Filter

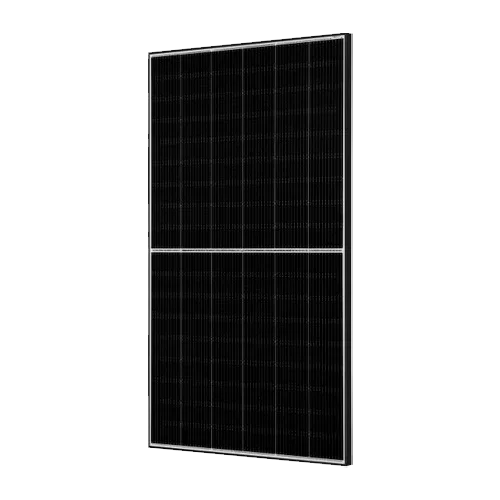

- 6 × JA Solar 455W JAM54D40 LB Mono PERC 108-cell Bifacial Solar Panel

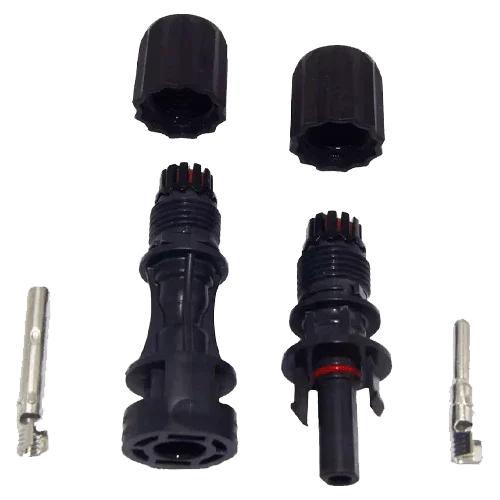

- 1 × Pair of MC4 WSPVCC-1500 Connectors Up to 1500 VDC

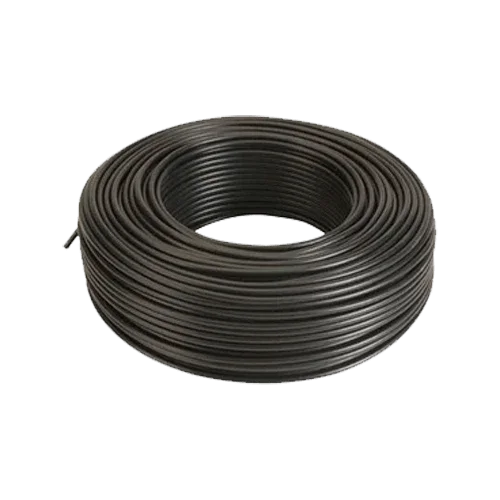

- 1 × PV1-F Black Solar Cable 1×6 mm² 25 m 1500V DC

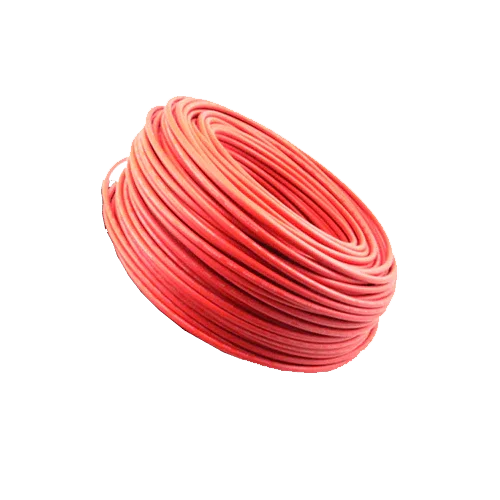

- 1 × PV1-F Red Solar Cable 1×6 mm² 25 m 1500V DC
The ZIRI 210m³ FCP1500S 2200W 36.4m³/h Solar Pool Kit combines outstanding flow, integrated MPPT electronics, and high-performance bifacial panels to keep water crystal clear with solar energy, minimizing operating and maintenance costs.
