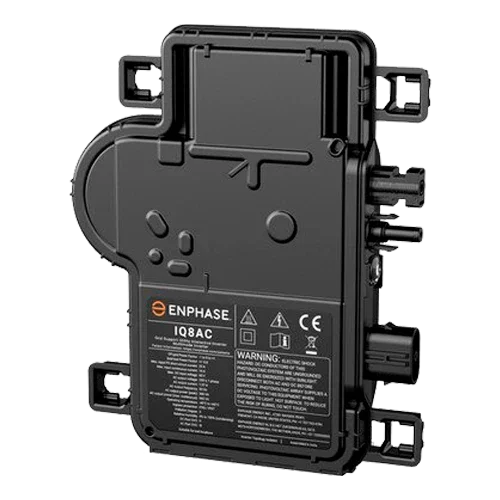

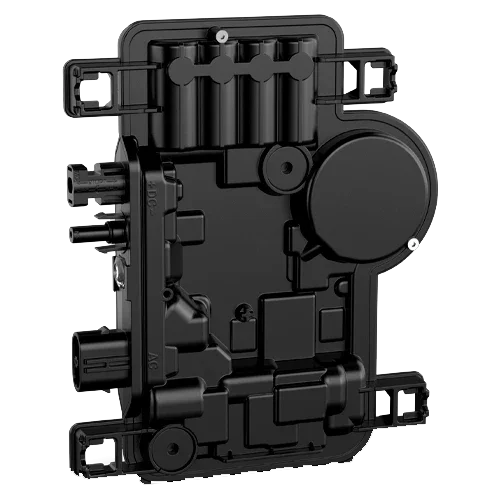

Enphase IQ 8AC Microinverter IQ8AC-72-M-INT

Modelo: IQ 8AC IQ8AC-72-M-INT

Sku: ENPHINV002
Vendor: Enphase

€277,18 EUR

€207,88 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

The Enphase IQ 8AC IQ8AC-72-M-INT Microinverter manages a PV module with high efficiency and 360 W nominal output. IP67, fanless, PLC with IQ Gateway, and suitable for panels up to 530 W on 230 V/50 Hz grids.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Enphase IQ 8AC IQ8AC-72-M-INT Microinverter is a next-generation single-phase microinverter for one (1) module per unit. With 360 W nominal, 230 V, and European efficiency of 96.6%, it maximizes production even with partial shading or mismatched modules. Its IP67 fanless enclosure increases outdoor reliability, and PLC communication with IQ Gateway simplifies commissioning, updates, and advanced monitoring in Enlighten.

Main Features

Nominal output power: 360 W (maximum apparent power 366 VA) at 230 V, 50 Hz.
Wide MPPT window: 28–45 V; DC operation 18–60 V (start-up 22 V).
Supports modules up to ~530 W and high currents (max Icc 14 A; module Isc ≤ 20 A).
Maximum efficiency 97.3% and EU efficiency 96.6%; adjustable power factor 1.0.
IP67 protection rating, Class II (double insulation), convection cooling.
PLC communication to IQ Gateway / Envoy-S and monitoring in Enlighten.

Advantages or Benefits

More energy per module: each panel operates at its optimal point, reducing losses due to mismatch and shading.
Safe and modular installation: no high-voltage DC strings; modular expansion without resizing.
Proven reliability: sealed electronics, no fan or moving parts, and passive thermal management.
Intelligent management: grid profiles, export limitation, and diagnostics from the app/portal.
Optimized total cost: less commissioning time and fewer O&M incidents.

Purpose or Applications

Ideal for residential self-consumption and small commercial installations, rooftop repowering with multiple orientations, and installations with localized shading. Also recommended when safety is prioritized by avoiding high DC voltages on the roof.

Technical Specifications

Nominal AC power	360 W (366 VA max.)
Voltage / Frequency	230 V (184–276 V) / 50 Hz (45–55 Hz)
Max. output current	1.59 A
Max. / EU efficiency	97.3% / 96.6%
DC input (range)	18–60 V (start-up 22 V)
MPPT window	28–45 V
Max Icc / Module Isc	14 A / ≤ 20 A
Recommended PV power	Up to ~530 W
Communications	PLC to IQ Gateway / Envoy-S
Protection / Insulation	IP67 / Class II
Cooling	Natural convection (no fan)
Ambient temperature	−40 °C to +60 °C
Dimensions / Weight	≈ 212×175×30 mm / ≈ 1.1 kg
Capacity per circuit	Up to 10 units on 20 A AC circuit (L-N)

Compatibilities

Native integration with IQ Gateway / Envoy-S (Standard or Metered) and Enlighten platform. Ecosystem accessories: IQ Relay for grid interface, 100 A CTs for measurement/limitation with IQ Gateway Metered, IQ cabling (single-phase trunk cable), Q-TERM (terminator), Q-SEAL (watertight cap), and Q-DISC tool for disconnection. In customer store: IQ Gateway Metered 2, CT 100 A, Q-SEAL-10, Q-DISC-10, and trunk/closure accessories.

The Enphase IQ 8AC IQ8AC-72-M-INT Microinverter is a professional solution to maximize production, enhance safety, and simplify monitoring of your installation. With the Enphase IQ 8AC IQ8AC-72-M-INT Microinverter you gain flexibility to expand by modules, optimize space, and ensure reliable self-consumption in the long term.
