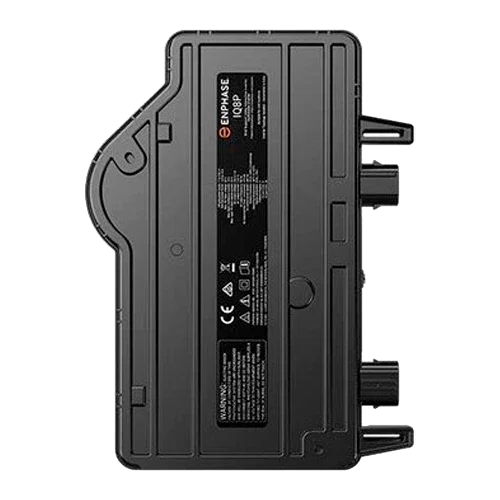

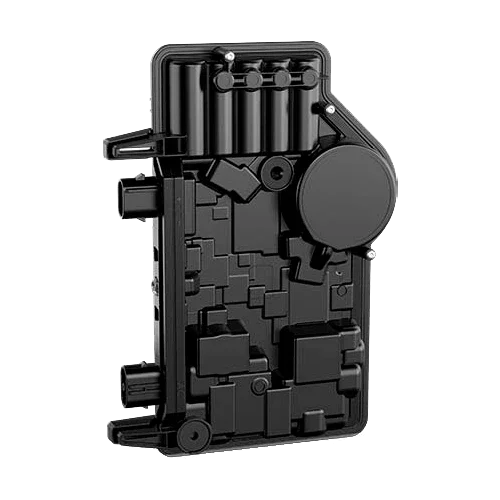

Enphase IQ 8P Microinverter IQ8P-72-2-INT

Modelo: IQ 8P IQ8P-72-2-INT

Sku: ENPHINV004
Vendor: Enphase

€320,67 EUR

€240,50 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

The Enphase IQ 8P IQ8P-72-2-INT Microinverter maximizes a high-power panel with 475 W nominal. IP67, fanless, MC4 (Q-DCC-2), PLC with IQ Gateway and rapid shutdown; ideal for modules up to 670 W.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Enphase IQ 8P IQ8P-72-2-INT Microinverter is the very high power option in the IQ8 series for one (1) photovoltaic module per unit. With 475 W nominal at 230 V and an MPPT window of 36–55 V, it maximizes the performance of next-generation panels with high currents and power up to ~670 W. Its IP67 fanless enclosure, double insulation (Class II), and PLC communication with IQ Gateway provide reliability, safety, and fast commissioning with advanced monitoring in Enlighten.

Main Features

Nominal output: 475 W (maximum apparent power 480 VA) at 230 V / 50 Hz.
Wide MPPT window: 36–55 V; DC operation 16–65 V (start-up 22 V).
Supports modules up to ~670 W; max input Icc 14 A; allowed module Isc ≤ 25 A.
Maximum efficiency 97.34 % and EU efficiency 97.0 % with adjustable cosφ.
IP67 protection rating, Class II, and convection cooling (fanless).
MC4 connection via Q-DCC-2 adapter and PLC communication with IQ Gateway.

Advantages or Benefits

Leverages powerful panels: reduces clipping and losses due to mismatch and partial shading.
Roof safety: module-level architecture without high voltage DC strings.
Superior reliability: encapsulated IP67 electronics and no moving parts.
Smart management: grid profiles, export limitation, and diagnostics from Enlighten.
Scalability: allows panel-by-panel expansion and simplifies repowering.

Purpose or Applications

Ideal for premium residential self-consumption and small/commercial installations where 450–670 Wp modules with high current are used. Especially useful on roofs with multiple orientations, shaded areas, and projects prioritizing safety, modularity, and easy maintenance.

Technical Specifications

Nominal AC power	475 W (480 VA max.)
Voltage / Frequency	230 V (184–276 V) / 50 Hz (47–55 Hz)
Max output current	2.07 A
Max / EU efficiency	97.34 % / 97.0 %
DC input (range)	16–65 V (start-up 22 V)
MPPT window	36–55 V
Max Icc / Module Isc	14 A / ≤ 25 A
Recommended PV power	Up to ~670 W per module
DC connector	MC4 via Q-DCC-2
Protection / Insulation	IP67 / Class II
Cooling	Natural convection (fanless)
Ambient temperature	−40 °C to +65 °C
Dimensions / Weight	≈ 265×200×35 mm / ≈ 1.6 kg
Capacity per circuit	Up to 7 units on 20 A AC circuit (L-N)

Compatibilities

Native integration with IQ Gateway (Standard or Metered) and Enlighten platform; IQ Relay as grid/anti-islanding interface depending on country. Usual ecosystem and accessories: IQ cabling (mono/tri trunk), Q-Connectors, Q-TERM (terminator), Q-SEAL (watertight cap), Q-DISC (disconnection tool), and 100 A CTs with IQ Gateway Metered for export measurement and limitation.

Enphase IQ 8P IQ8P-72-2-INT Microinverter is a professional solution to extract maximum energy from high-power panels, optimize space, and ensure reliable and efficient self-consumption in the long term. With the Enphase IQ 8P IQ8P-72-2-INT Microinverter you gain flexibility, safety, and total control of your installation.
