TBB Power E4 LCD 4.3" Monitor for solar systems
Modelo: E4 LCD Monitor- Sku: TBBACCE005
- Vendor: TBB
Specifications
Product description

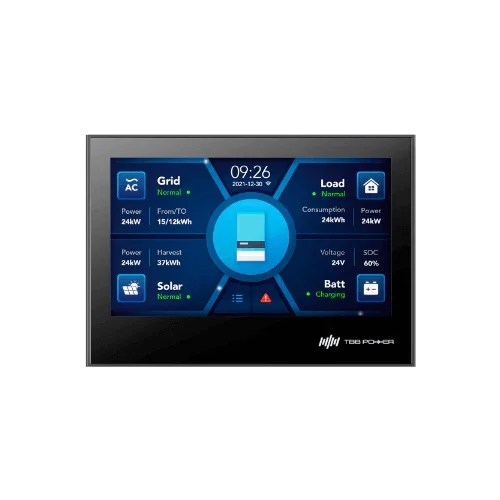

The TBB Power E4 LCD 4.3" Monitor is an advanced solution for monitoring and energy management of TBB solar systems. Designed to provide local control and remote integration via WiFi, this monitor allows access to all system information in real time from its touchscreen or from the online NOVA portal, enabling more efficient and professional energy management.
Main features
- 4.3-inch LCD touchscreen with high resolution and LED backlighting
- Integrated WiFi for connection with the TBB NOVA portal
- Real-time display of solar, battery, grid, and generator data
- Log of up to 2000 historical events and 400 operations
- Intelligent scheduling of loads, generators, and time slots
- Intelligent control based on SOC, time, and operating mode
Advantages or benefits
- Full access to energy management from anywhere via NOVA Online
- Greater control of consumption, production, and storage to optimize resources
- Simple configuration of parallel or three-phase installations
- Compatible with lithium batteries with integrated monitoring functions
- Clear visualization of daily, monthly, and annual graphs and statistics
- Ideal for off-grid and self-consumption installations without grid connection
Purpose or applications
The E4 monitor is designed for off-grid, hybrid, or energy storage solar systems managed with TBB Power equipment. It is ideal for residential, industrial, or agricultural installations that require centralized visualization of all electrical parameters. It is also suitable for systems with auxiliary generator, public grid, and lithium batteries.
Technical specifications
| Display | 4.3" capacitive touch LCD |
| Resolution | 480x272 pixels |
| Communication | WiFi, RS485, CAN |
| Nominal voltage | 12 V |
| Voltage range | 9–16 V |
| Dimensions | 115×90×35 mm |
| Protection | IP21 |
Compatibilities
This product is compatible with: 1kVA L 12V, 1.5kVA M 24V, 2kVA M, 3kVA M, 2kVA S 48V, 3kVA S, 5kVA S, 8kVA S, SP150-60, SP250-70, SP250-100.
TBB Power E4 LCD 4.3" Monitor is the perfect tool to control and optimize your solar system with total precision and connectivity. Manage, view, and improve the energy performance of your installation from a single interface.
