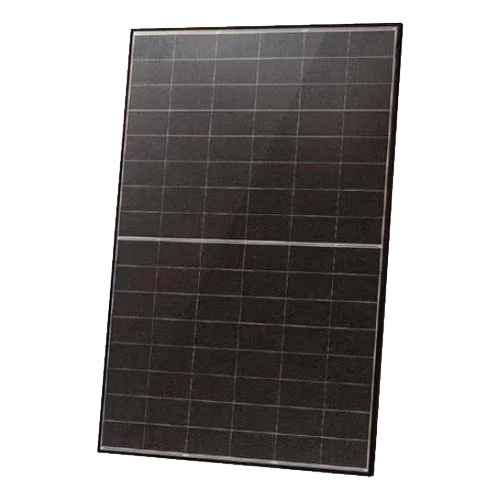

Pallet 37 Bifacial Panels 460W Jinko N-Type JKM460N-48HL4M-DV

Product Description

The Pallet of 37 Bifacial Panels 460W Jinko N-Type JKM460N-48HL4M-DV is designed for projects and self-consumption parks seeking power, durability, and logistical ease. Each module uses N-Type TOPCon technology with double glass encapsulation, offering lower degradation, better performance under low irradiance, and high mechanical resistance. The 460 Wp model achieves an efficiency of 23.02%, with balanced electrical parameters for stable strings in modern inverters.

Main Features

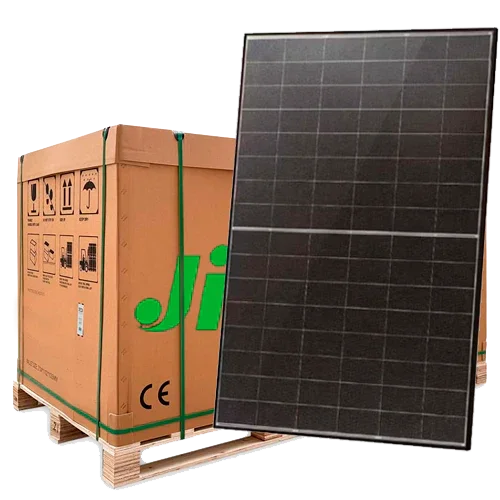

• Pallet with 37 units (74 per stack), pallet dimensions 1792 × 1140 × 1249 mm.
• Series 48HL4M-DV (range 450–475 W); typical reference: 460 Wp per module.
• STC parameters per module (460 Wp): Vmp 30.71 V, Imp 14.98 A, Voc 36.38 V, Isc 15.91 A.
• Front glass AR 2.0 mm + rear tempered glass 2.0 mm; anodized aluminum frame.
• Junction box IP68, JK03/MC4 connectors and 4 mm² cables.
• Design certainty: max. system voltage 1500 V DC and series fuse 30 A.

Advantages or Benefits

• Very competitive levelized cost per kWp when purchasing a full pallet.
• Long service life due to glass-glass construction and lower LID/LeTID of N-Type cells.
• Excellent thermal behavior (Pmax coeff. −0.29 %/°C) that maintains production in summer.
• Greater robustness against humidity, dust, and coastal environments.
• Simplified logistics on site: optimized factory protection and stacking.

Purpose or Applications

Ideal for industrial roofs, canopies, self-consumption solar farms, isolated microgrids with suitable MPPT regulators, and photovoltaic pumping systems. The 96-cell format facilitates stable string configurations and optimal MPPT utilization in three-phase and single-phase inverters.

Technical Specifications

Compatibilities

Compatible with grid-tied and hybrid inverters that support strings in systems up to 1500 V DC and MPPT input currents equal to or greater than the set Isc (consider a 1.25 factor for protections and cables). Suitable for microinverters if the power, Voc, and Isc per input are within their limits. Suitable for on-grid installations, off-grid with MPPT, and solar pumping solutions. Always calculate the number of modules in series so that the Voc_total at minimum temperature does not exceed the equipment's rating, and verify the DC/AC wiring section and protections.

The Pallet of 37 Bifacial Panels 460W Jinko N-Type JKM460N-48HL4M-DV provides power, reliability, and impeccable logistics for demanding solar projects with the best price-performance ratio.
