Victron Cerbo GX | Control Center for Energy Systems
Modelo: Cerbo GX- Sku: VICTACC005
- Vendor: Victron
Specifications
Product description

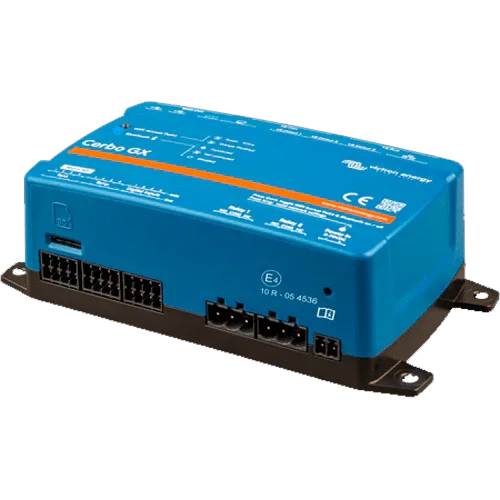

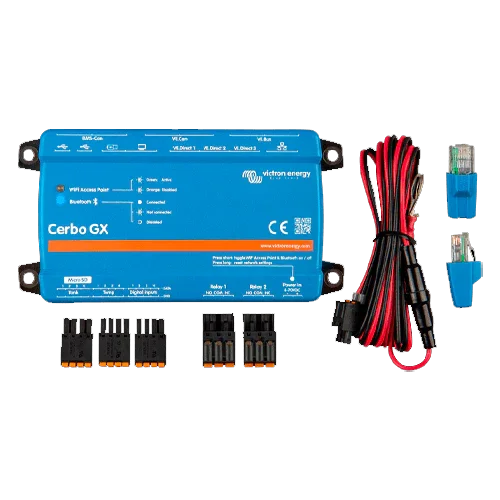

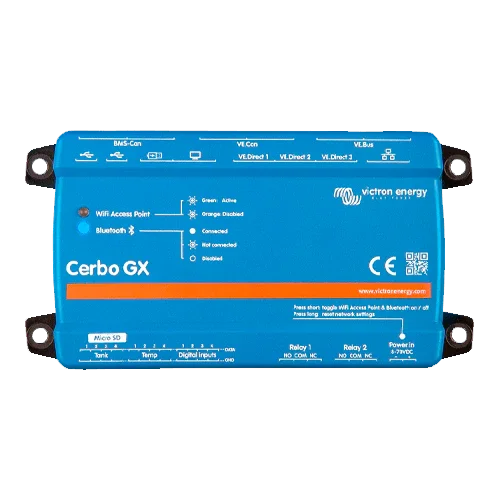

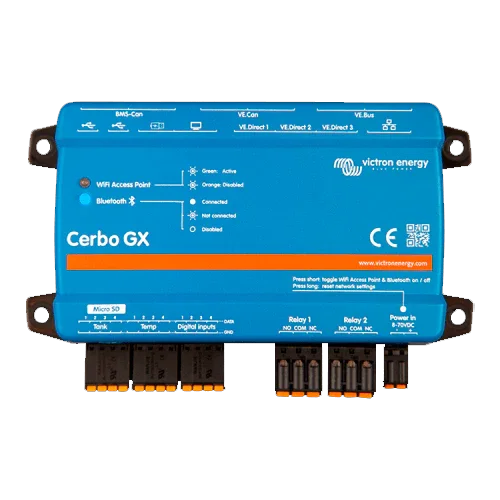

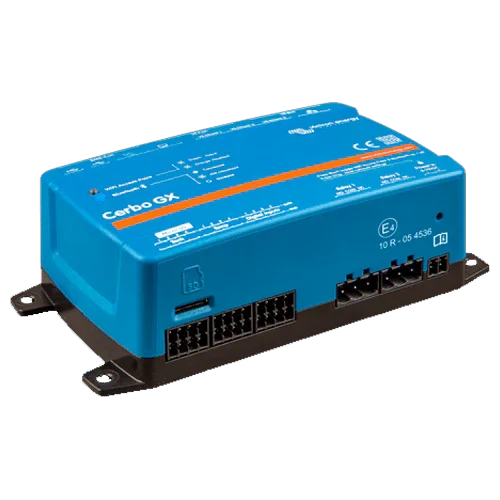

The Victron Cerbo GX is the most advanced communications center in the Victron ecosystem. It allows monitoring, control, and automation of the entire energy system through the VRM portal, remote console, or with touchscreens such as the GX Touch 50 or GX Touch 70. Its Bluetooth connectivity, multiple inputs, and expansion capability make it a modern, powerful, and flexible solution for all types of Victron installations.
Main features
- Wide power supply: 8 – 70 V DC and low consumption

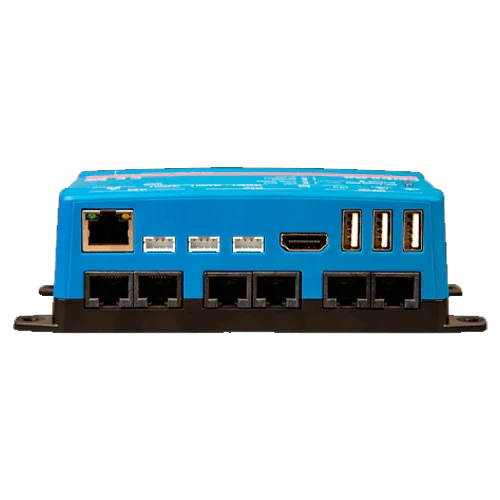

- 3 VE.Direct ports, 2 VE.Bus, VE.Can, BMS-Can, and HDMI
- Connectivity via Ethernet, USB, microSD, WiFi (optional), and Bluetooth
- Inputs for 4 tanks, 4 temperature sensors, and 4 digital sensors
- 2 programmable relays for automation and load management
- Compatible with GX Touch 50 / 70 touchscreen
Advantages or benefits
- Allows management of the entire system from a single interface
- Remote access via the Victron VRM portal or local console through LAN/WiFi
- Real-time monitoring of batteries, solar energy, loads, and grid
- Automates generator start, alarms, and relays according to parameters
- Compatible with smart batteries via BMS-Can (Victron, Pylontech, BYD…)
- Modular and scalable for all types of installations
Purpose or applications
The Victron Cerbo GX is ideal for residential and industrial solar installations, boats, caravans, campers, and any Victron project requiring advanced monitoring. Its modularity makes it the preferred choice for professional integrators seeking complete system control.
Technical specifications
| Model | Victron Cerbo GX |
| Power supply | 8 – 70 V DC |
| Mounting | Wall or DIN rail (with optional adapter) |
| Dimensions | 78 × 154 × 48 mm |
| Display | Not included (requires GX Touch 50/70) |
| VE.Direct | 3 ports |
| VE.Bus | 2 RJ45 ports |
| VE.Can | Yes |
| BMS-Can | Yes (for CAN batteries) |
| Tank inputs | 4 resistive |
| Temperature inputs | 4 |
| Digital inputs | 4 |
| Relays | 2 programmable |
| USB | 3 type A ports |
| Ethernet | RJ45 10/100/1000 Mbps |
| HDMI | 1 (for GX Touch) |
| Bluetooth | Yes |
| WiFi | Optional (USB dongle) |
Compatibilities
This product is compatible with: Victron GX Touch 50, Victron GX Touch 70, MultiPlus / Quattro, SmartSolar MPPT, BMV-712 Smart, and CAN-compatible batteries such as Victron, BYD, or Pylontech.
Victron Cerbo GX is the digital brain that unifies all the elements of your Victron installation. It provides flexibility, total control, and advanced connectivity to make the most of your energy system.
