Victron Color Control GX | Centralized Monitoring
Modelo: Color Control GX- Sku: VICTACC004
- Vendor: Victron
Specifications
Product description

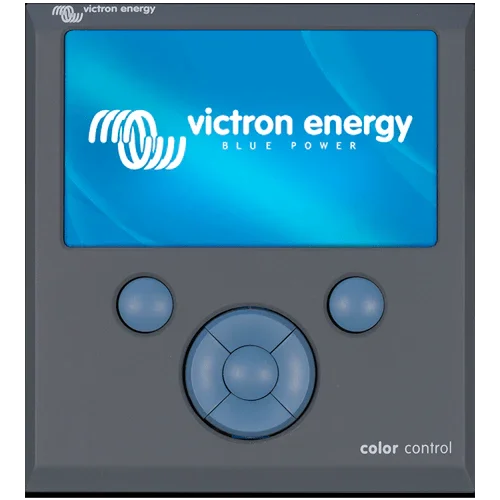

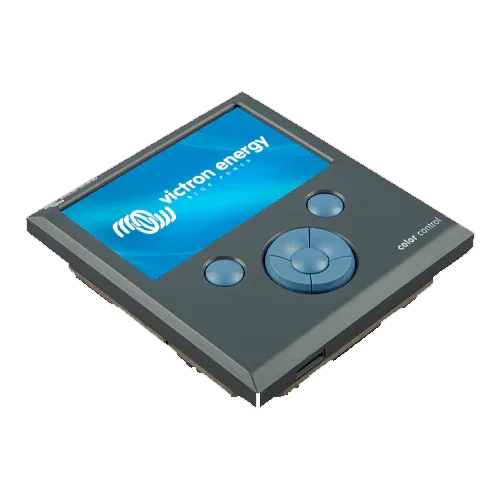

The Victron Color Control GX (CCGX) is a centralized control and monitoring unit that allows supervision of all devices in a Victron system from an integrated color display. It provides a comprehensive graphical interface to view and control inverters, chargers, solar controllers, batteries, sensors, and generators. Its connectivity with the VRM portal and automatic generator start capability make it a professional and versatile tool for demanding energy installations.
Main features
- Integrated high-visibility color graphic display

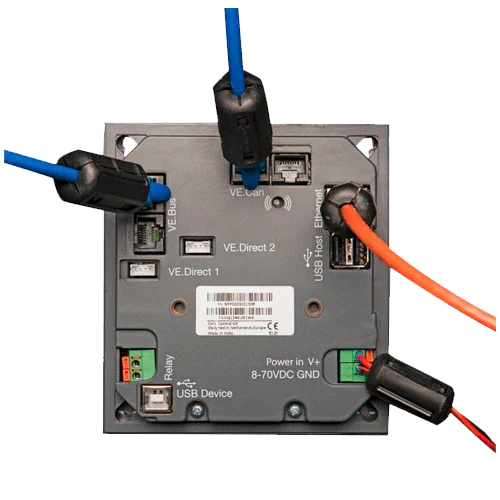

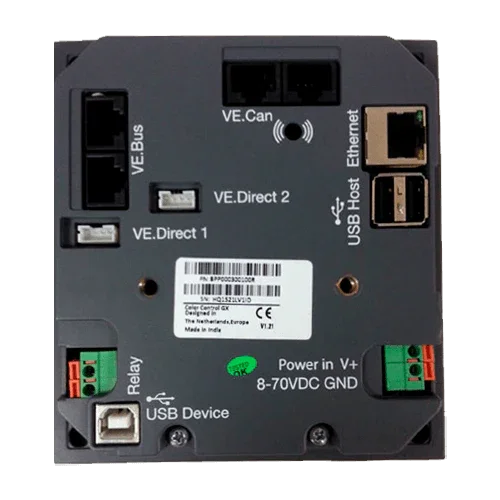

- 2 VE.Direct ports, 2 VE.Can, 2 VE.Bus, 2 USB, and 1 Ethernet
- Compatible with BMV, MultiPlus, Quattro, MPPT, Lynx Ion, Skylla TG, and more
- Remote interface via VRM, LAN console, and Modbus-TCP
- Ultra-low consumption: only 140 mA at 12 V with the display off
- Simple surface mounting (130 × 120 × 28 mm)
Advantages or benefits
- Monitor and control the entire Victron system from a single interface
- Local console and remote access as if you were in front of the equipment

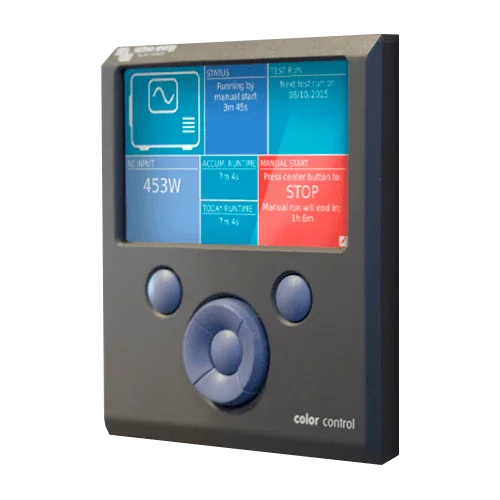

- Automatic generator start and stop based on SOC, voltage, or schedule
- Records real-time data and enables precise diagnostics
- Automatic updates and multilingual (includes Spanish)
Purpose or applications
The Victron Color Control GX is ideal for off-grid solar installations, caravans, boats, industrial or commercial systems using Victron technology. It provides a unified control point to manage multiple devices and optimize system performance.
Technical specifications
| Power supply voltage | 8 – 70 VDC |
| Consumption (display off) | 140 mA (12 V) / 80 mA (24 V) / 40 mA (48 V) |
| Display | Integrated color display |
| VE.Direct | 2 isolated ports |
| VE.Can | 2 parallel RJ45 ports, isolated |
| VE.Bus | 2 parallel RJ45 ports, isolated |
| USB Host | 2 ports (not isolated) |
| Ethernet | 1 RJ45 port 10/100/1000 Mb |
| Remote connection | VRM / LAN Console / Modbus-TCP |
| Dimensions | 130 × 120 × 28 mm |
| Operating temperature | −20 °C to +50 °C |
| Operating system | Venus OS (Linux embedded) |
Compatibilities
This product is compatible with: MultiPlus and Quattro inverters, SmartSolar and BlueSolar MPPT controllers, BMV-700, BMV-712 Smart, batteries with Lynx Ion BMS, Skylla TG chargers, and NMEA2000 sensors.
Victron Color Control GX remains an excellent all-in-one solution for projects requiring direct local visualization. Although Victron recommends Cerbo GX + GX Touch for new installations, the CCGX is still fully functional and compatible with the Victron ecosystem.
