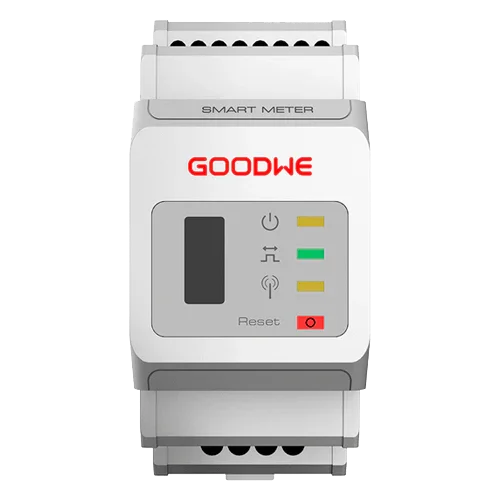

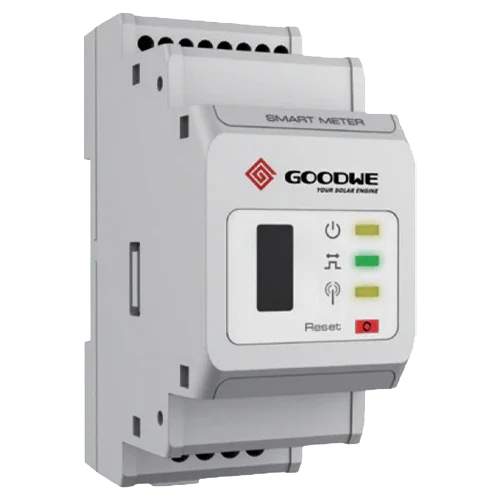

GoodWe GM1000 Smart Meter Single-phase 120A RS485

Product description

The GoodWe GM1000 Single-Phase 120A RS485 Smart Meter is designed for single-phase self-consumption installations, offering precise measurement of energy, voltage, current, and active/reactive power. It is compatible with GoodWe inverters via RS485 interface and integrates with SEMS Portal, allowing remote monitoring, zero export control, and consumption analysis. Includes a CT current transformer (120 A:40 mA) and is easily mounted on a DIN rail.

Main features

• Single-phase measurement 230 V with class 1 accuracy
• Current up to 120 A with included CT transformer
• RS485 interface with range up to 1000 m
• DIN rail mounting (2 modules)
• Compatible with SEMS Portal, EZManage, EzLogger Pro and SEC1000
• Compact design with low consumption (< 3 W)

Advantages or benefits

• Allows monitoring and optimization of self-consumption in homes
• Facilitates compliance with zero export regulations
• Easy installation with CT already included
• Provides detailed real-time data for diagnostics and efficiency
• Compatible with GoodWe single-phase inverters (XS, DNS, NS, MS, EM)

Purpose or applications

This meter is designed for single-phase solar installations where it is desired to control electrical consumption, limit grid export, or simply monitor system performance. Ideal for residential systems with GoodWe inverters and connection to the SEMS ecosystem.

Technical specifications

Compatibilities

This product is compatible with: GoodWe GM3000, GoodWe HomeKit HK3000, GoodWe SEC1000 and GoodWe XS, DNS, NS, MS, EM single-phase inverters.

GoodWe GM1000 Single-phase Smart Meter 120A RS485 is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
