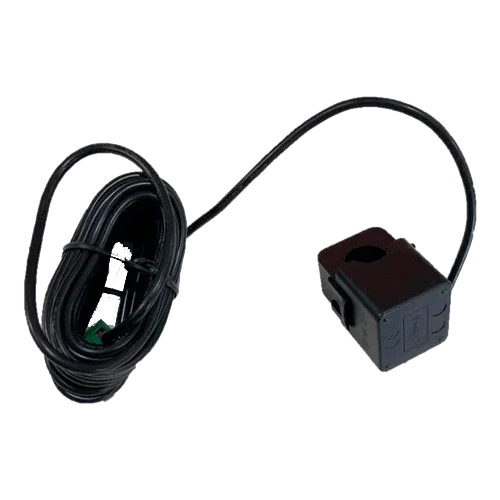

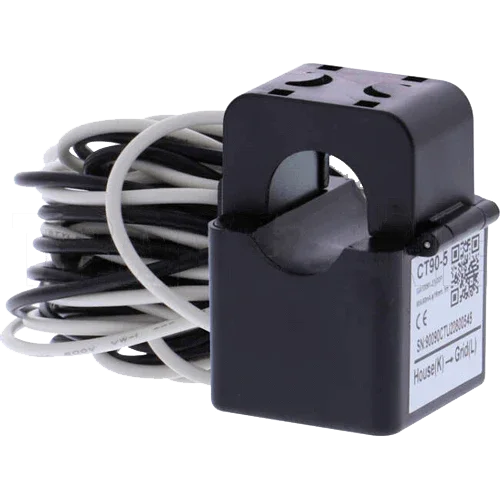

GoodWe CT90-5 5A Current Transformer for Meter

Product description

The GoodWe CT90‑5 5A Current Transformer for Meter is a clip-on sensor designed to measure alternating current in photovoltaic installations, facilitating consumption monitoring, export limit activation, and integration with monitoring systems. With a 5 A secondary output and a 5 m cable included, this model is highly accurate and easy to install, being compatible with a wide range of GoodWe inverters and meters.

Main features

• Primary measurement current: up to 90 A
• Transformation ratio: 90 A : 5 A
• Reading accuracy: error ≤ 1 %
• Integrated 5 m cable
• Compatible with GoodWe single-phase and three-phase inverters
• Compact design: 37 × 37 × 55 mm

Advantages or benefits

• Enables precise control of energy flow and compliance with export regulations
• Facilitates analysis of electrical consumption to improve self-consumption
• Simple clip-on installation on phase conductor
• High reliability and compatibility with GoodWe systems
• Ideal for integration with management systems such as GM3000, SEC1000, and EzLogger Pro

Purpose or applications

The GoodWe CT90‑5 is designed for residential or commercial installations that require current monitoring or zero export functions. It is used in conjunction with GoodWe inverters and smart metering systems to comply with regulations and optimize energy management of the photovoltaic system.

Technical specifications

Compatibilities

This product is compatible with: GoodWe GM3000, GoodWe HomeKit HK3000, GoodWe SEC1000.

GoodWe CT90‑5 5A Current Transformer is a professional solution for demanding renewable energy projects. Increases autonomy, optimizes space, and improves the efficiency of your installation.
