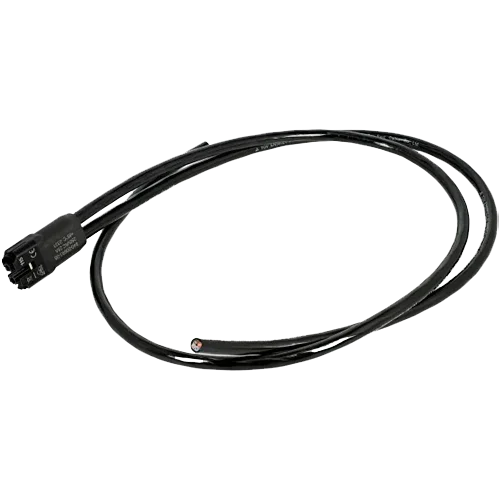

Enphase Q Single-phase Cable 2.5mm 1.7m

Product description

The Enphase Q Single-Phase Cable 2.5 mm 1.7 m is a pre-connected and robust solution for single-phase solar installations with Enphase IQ microinverters. This model (Q-25-17-240) features a 1.7-meter spacing between connectors, perfect for 60-cell PV modules arranged horizontally. Manufactured with 2.5 mm² conductors, it offers a quick, safe, and outdoor-resistant connection, facilitating installation and ensuring a long service life.

Main features

• 1.7 m spacing between connectors for horizontal mounting
• 2.5 mm² conductors (L and N) with double insulation
• Watertight connectors with IP67 protection rating
• Maximum current: 25 A — Rated voltage: 250 V AC
• UV resistance, CE and RoHS compliant, temperature up to 90 °C

Advantages or benefits

• Quick installation without the need to crimp or splice cables
• Prevents connection errors and improves system reliability
• Designed for single-phase residential applications
• Compatible with the entire range of Enphase IQ microinverters

Purpose or applications

This cable is ideal for residential photovoltaic installations with horizontally mounted modules, using Enphase IQ microinverters in single-phase configuration. Perfect for self-consumption systems requiring a clean, fast, and safe installation.

Technical specifications

Compatibilities

This product is compatible with: enphase-iq-7-plus-microinverter, enphase-iq-8ac-microinverter, enphase-iq-8hc-microinverter, enphase-iq-8p-microinverter, enphase-single-phase-female-field-connector, enphase-single-phase-male-field-connector, end-cap-for-enphase-single-phase-cable, enphase-female-connector-cap, enphase-disconnection-tool.

Enphase Q Single-phase Cable 2.5 mm 1.7 m offers maximum efficiency in microinverter interconnection, reducing installation time and ensuring full compatibility with single-phase self-consumption systems.
