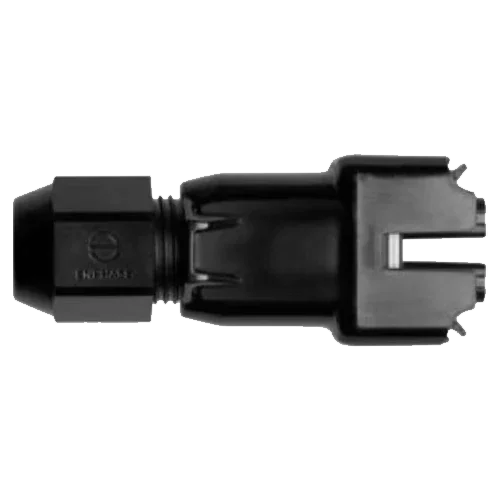

Enphase Q Single-phase Male Connector

Product description

The Enphase Q Single-Phase Male Connector (model Q-CONN-R-10M) is a field accessory designed for splicing, extending, or branching in solar installations with Enphase Q single-phase cabling. It is part of the AC distribution system in installations with IQ7 and IQ8 microinverters, providing a reliable and watertight connection when used correctly together with the corresponding female connector.

Main features

• Male connector for Enphase Q single-phase cable (2.5 mm²)
• Allows direct connection between cables or to microinverters
• IP67 protection when installed with the appropriate accessories
• Design suitable for installation on roofs or solar structures
• Easy field assembly without specialized tools

Advantages or benefits

• Ideal for splices or extensions in Enphase single-phase installations
• Quick, secure, and water- and dust-resistant connection
• Compatible with all single-phase IQ system components
• Prevents polarity or connection errors with specific L/N design

Purpose or applications

The Enphase Q Single-Phase Male Connector is used in residential self-consumption installations with IQ microinverters connected to the Q cabling system. Its function is to allow the extension of the AC line, join cable sections, or make secure connections from any point in the single-phase installation.

Technical specifications

Compatibilities

This product is compatible with: Enphase Q Single-Phase Cable 2.5 mm 1.3 m, Enphase Q Single-Phase Cable 2.5 mm 1.7 m, Enphase Q Single-Phase Cable 2.5 mm 2.0 m, Enphase Q Single-Phase Female Connector, IQ 7+, IQ 8AC, IQ 8HC, IQ 8P.

Enphase Q Single-Phase Male Connector is a professional solution for demanding renewable energy projects. Increases autonomy, optimizes space, and improves the efficiency of your installation.
