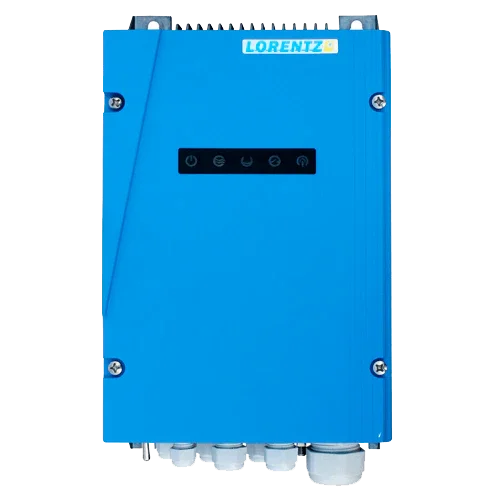

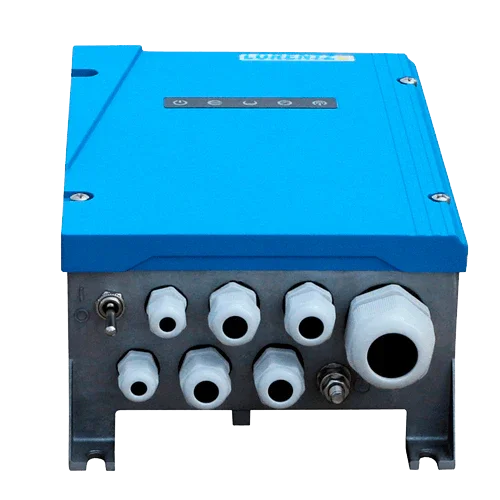

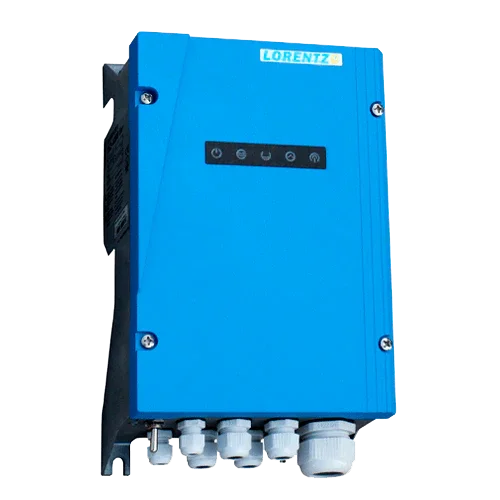

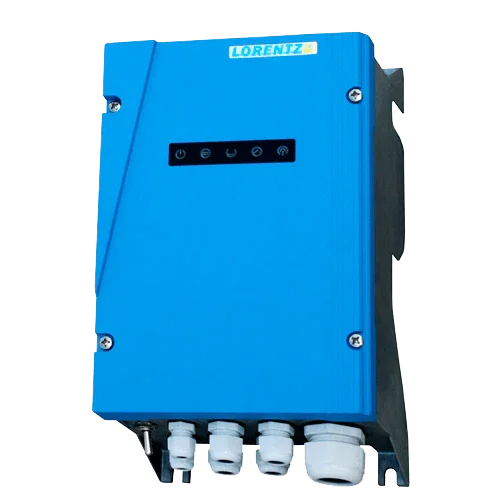

Lorentz PS2-1800 1.8kW IP68 MPPT Solar Controller
Modelo: 07-000530 PS2-1800 Controller-1.8kVA- Sku: LOREACC004
- Vendor: Lorentz
Specifications
Product description
The Lorentz PS2-1800 1.8 kW is a submersible solar controller with MPPT technology, designed for pumping systems up to 1.8 kW. With IP68 protection rating, it is perfect for installations in remote environments, deep wells, or sealed enclosures. It is part of the Lorentz PS2 system and provides full control over the motor, solar power, sensors, and system protection, with maximum efficiency and reliability.
Main features
- Output power: 1.8 kW
- Maximum input voltage: 200 VDC / MPPT active from 102 VDC
- IP68 protection rating: completely watertight
- Maximum efficiency: 98 %
- Integrated solar sensor: automatic control by irradiation
- Digital inputs for well probes, float switches, pressure or flow sensors
Advantages or benefits
- Optimizes solar performance in real time thanks to the integrated MPPT
- Submersible installation, no forced ventilation or constant maintenance required
- Full compatibility with Lorentz sensors and protections
- Easy setup with PumpScanner mobile app or Compass software
- Prepared for backup with grid or generator via PowerPack PP2000
Purpose or applications
The PS2-1800 is designed for solar pumping installations in off-grid environments. Ideal for wells, medium-scale agricultural irrigation, livestock, and potable water supply in areas without access to the electrical grid. It is also perfectly suited for hybrid systems with a generator.
Technical specifications
| Power | 1.8 kW |
| Nominal voltage | Vmp >102 VDC / Voc max. 200 VDC |
| Format | Submersible, IP68 |
Compatibilities
This product is compatible with: PU1800 CS-F4-6, PU1800 C-SJ1-25, PU1800 C-SJ3-18, PU1800 C-SJ5-12, PU1800 C-SJ8-7, PU1800 C-SJ12-4, PU1800 C-SJ17-2, PU1800 C-SJ30-1, PU1800 C-SJ42-1, PU1800 HRE-03, PU1800 HRE-03H, PU1800 HRE-04, PU1800 HRE-04H, PU1800 HRE-05HL, PU1800 HRE-07, PU1800 HRE-07H, PU1800 HRE-10, PU1800 HRE-14, PU1800 HRE-14H, PU1800 HRE-23, PU1800 HRE-32, PU1800 CS-37-1, PowerPack PP2000S, Level switch, Surge protector, Well probe, Solar sensor.
Lorentz PS2-1800 1.8 kW is the ideal controller for off-grid solar projects that require precision, robustness, and full control of water pumping.
Descargar ficha técnica
