Lorentz Float Switch Level Switch

Product description

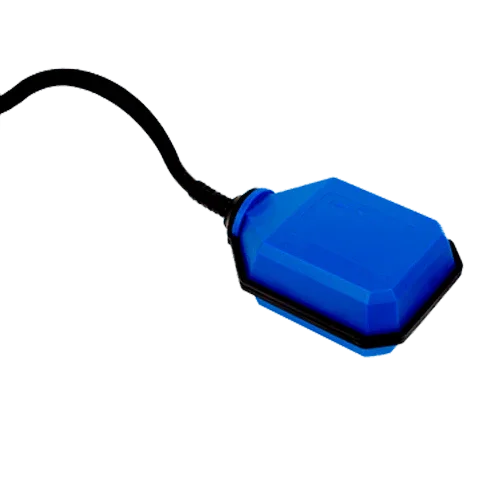

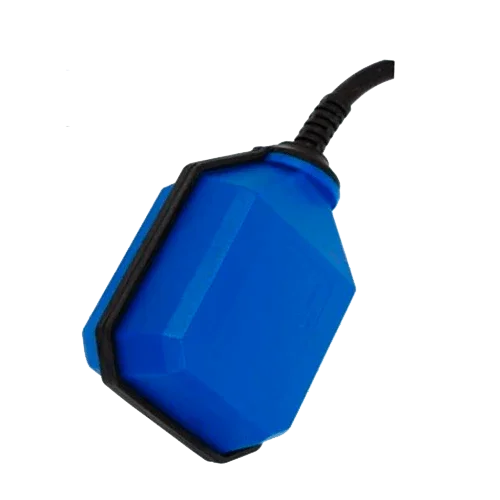

The Lorentz Float Switch Level Switch 3 m is a float-type level sensor, designed to automatically control the operation of solar pumps based on the water level in tanks or reservoirs. With IP68 protection, mechanical operation without electronics, and dry contact signal, this switch connects directly to Lorentz PS2 and PSk2 controllers for functions such as stop on full tank, start on low level, or remote on/off control.

Main features

• Cable length: 3 m, with cross-section and insulation for submersible use
• IP68 protection for permanent immersion in clean water
• Normally open (NO) or normally closed (NC) function configurable by mounting
• Compatible with all Lorentz PS2 and PSk2 controllers
• Includes counterweight for actuation level adjustment
• Easy installation without special tools

Advantages or benefits

• Prevents tank overflows by automatically stopping the pump
• Allows automatic restart when the level drops if configured for filling
• Provides additional safety in unattended systems
• Compatible with Lorentz system remote functions (Remote On/Off)

Purpose or applications

The Lorentz Level Switch is used in storage tanks, reservoirs, or cisterns to control solar pumps in irrigation, supply, or intermediate pumping systems. It is especially useful in autonomous, unattended installations where overflow or unnecessary pump operation must be avoided. It is also an effective solution for elevated or booster installations.

Technical specifications

Compatibilities

This product is compatible with: Lorentz PS2-150 Controller, Lorentz PS2-200 Controller, Lorentz PS2-600 Controller, Lorentz PS2-1800 Controller, Lorentz PS2-4000 Controller, Lorentz Surge Protector 2.

Lorentz Float Switch Level Switch 3 m is a simple, robust, and efficient solution to ensure automatic level control in tanks within Lorentz solar pumping systems.
