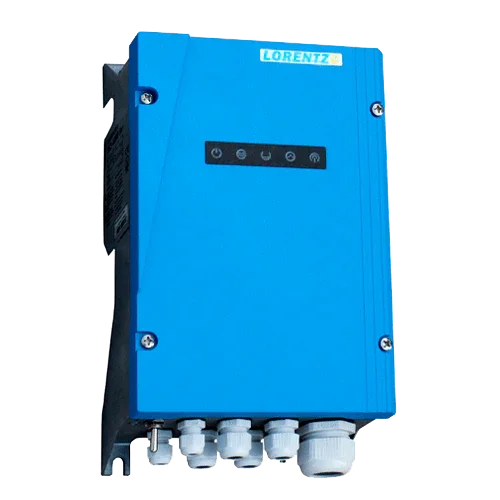

Lorentz PS2-150 0.3kW IP68 MPPT Solar Controller

Product description

The Lorentz PS2-150 0.3 kW is a high-performance solar controller for low-voltage solar-powered pumping applications. With MPPT technology, discharge protection, and a fully sealed IP68 enclosure, this device has been optimized for small systems requiring efficiency, autonomy, and ease of integration. Compatible with Lorentz submersible or surface pumps of very low power, it allows operation with either a single solar panel or a battery.

Main features

• Output power: 0.3 kW for small pumps
• Integrated MPPT for maximum solar efficiency
• Maximum input voltage: 50 VDC (Voc), ideal for a single solar panel
• Maximum motor current: 22 A
• IP68 enclosure for submerged or outdoor installation
• Sensor inputs: well level, full tank, pressure, etc.

Advantages or benefits

• Ideal solution for installations in remote areas without grid connection
• Allows use of a single solar panel or low-voltage configurations
• Also operates with batteries and protects against total discharge
• Easy integration with automatic systems via sensors
• High efficiency (up to 98%) in demanding rural environments

Purpose or applications

The Lorentz PS2-150 is designed for small solar pumping systems with low voltages, such as watering troughs, orchards, off-grid domestic installations, or drip irrigation. Its versatility allows use with both solar panels and batteries, providing reliable and autonomous water supply anywhere.

Technical specifications

Compatibilities

This product is compatible with: PU150 AHR-04S, PU150 AHR-07S, PU150 C-SJ5-4, PU150 C-SJ5-8, PU150 BOOST-60, PU150 BOOST-125, PU150 BOOST-240, PU150 BOOST-330, Well probe, Lorentz solar sensor, Level switch, Surge protection.

Lorentz PS2-150 0.3 kW is a professional and economical solution for small off-grid solar pumping applications. Compact, robust, and efficient, it is ideal for agricultural, rural, or basic supply projects.
