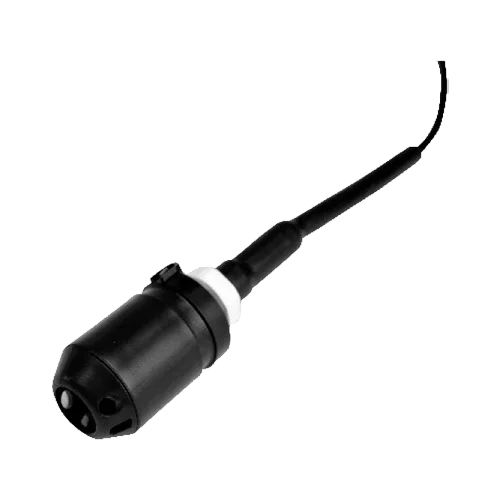

Lorentz Well Probe V2 IP68 1.5 m

Product description

The Lorentz Well Probe V2 IP68 1.5 m is a mechanical level sensor specifically designed for Lorentz solar pumping systems. Its main function is to protect the pump in the absence of water in the well or tank, automatically stopping operation when it detects a too low level. Thanks to its compact and robust design, it is easily installed vertically next to the riser pipe, ensuring reliable protection against dry running.

Main features

• IP68 protection for permanent submerged use
• Cable length: 1.5 m with 2 × 0.75 mm² cross-section
• Mandatory vertical mounting orientation for correct detection
• Compatible with all Lorentz PS2 and PSk2 controllers
• Includes waterproof splice kit and mounting ties
• Floating-type mechanical design, free of electronic maintenance

Advantages or benefits

• Prevents costly breakdowns by protecting the pump against dry running
• Extends the service life of the solar system and reduces technical interventions
• Easy installation and direct connection to the Lorentz controller
• Ideal for deep wells or remote systems without continuous supervision

Purpose or applications

This level probe is designed for solar pumping installations in wells, tanks, or cisterns. Its use is essential in autonomous, unattended systems, where a drop in water level can damage the pump motor if not detected in time. The Well Probe V2 provides an economical, simple, and effective solution to ensure the operational safety of the solar installation.

Technical specifications

Compatibilities

This product is compatible with: Lorentz PS2-150 Controller, Lorentz PS2-200 Controller, Lorentz PS2-600 Controller, Lorentz PS2-1800 Controller, Lorentz PS2-4000 Controller.

Lorentz Well Probe V2 IP68 1.5 m is a professional solution to protect your solar system against low water level situations. Increases reliability and prevents critical failures due to dry running.
