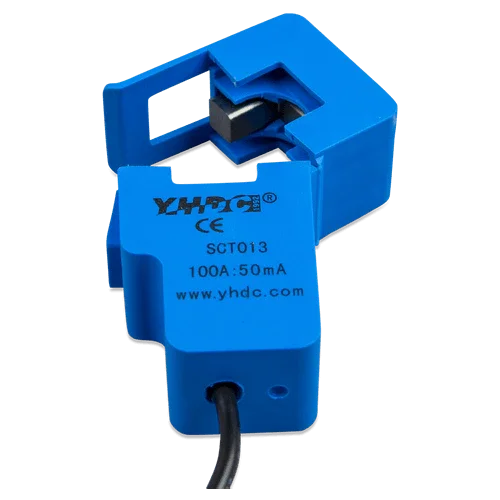

Victron Current Transformer CT 100A 50mA (1m)
Modelo: CT 100A 50mA 1m- Sku: VICTACC010
- Vendor: Victron
Specifications
Product description
The Victron CT 100A 50mA (1m) Current Transformer is a compact sensor designed to measure AC input current in systems with Victron MultiPlus-II and MultiGrid-II inverters. It provides a proportional analog signal of 50 mA based on a maximum current of 100 A, allowing the system to control energy flow from the grid or generator in real time. It is a key component for activating advanced functions such as PowerControl and PowerAssist.
Main features
- Transformation ratio: 100 A : 50 mA
- 3.5 mm jack connector pre-installed for direct connection
- 1-meter cable, ideal for compact installations
- Compatible with all MultiPlus-II and MultiGrid-II inverters
- Enables activation of PowerAssist and PowerControl
- Accurate AC phase current measurement
Advantages or benefits
- Optimizes solar self-consumption by detecting actual grid or generator demand
- Protects the installation by preventing overloads through configurable limits
- Allows efficient use of the battery to cover consumption peaks
- Quick and easy installation with direct jack
- Ideal for electrical panels close to the inverter
Purpose or applications
This current transformer is recommended for residential, marine, or mobile solar installations with Victron MultiPlus-II inverters that have the AC input panel nearby. It is the perfect option when an economical, high-precision solution is required without the need for long cables. It is also useful in three-phase systems by installing one sensor per phase.
Technical specifications
| Model | CTR110000100 |
| Transformation ratio | 100 A : 50 mA |
| Cable length | 1 m |
| Connector type | 3.5 mm jack |
| Inner diameter | ~16–20 mm |
| Weight | 150–200 g |
Compatibilities
This product is compatible with: MultiPlus-II 48/3000/35-32, MultiPlus-II 48/3000/35-32 GX, MultiPlus-II 48/5000/70-50, MultiPlus-II 48/5000/70-50 GX, MultiPlus-II 48/8000/110-100, MultiPlus-II 48/10000/140-100, MultiPlus-II 48/15000/200-100.
Victron Current Transformer CT 100A 50mA (1m) is the most efficient and practical option for controlling current flow in high-performance Victron systems where precision, ease of installation, and minimal cable length are required.
